AUDIO WIRELESS AD224
RF filtering protects the receivers against interfering signal and unwanted dirty RF, maintains continuous RF reception in Diversity operations.

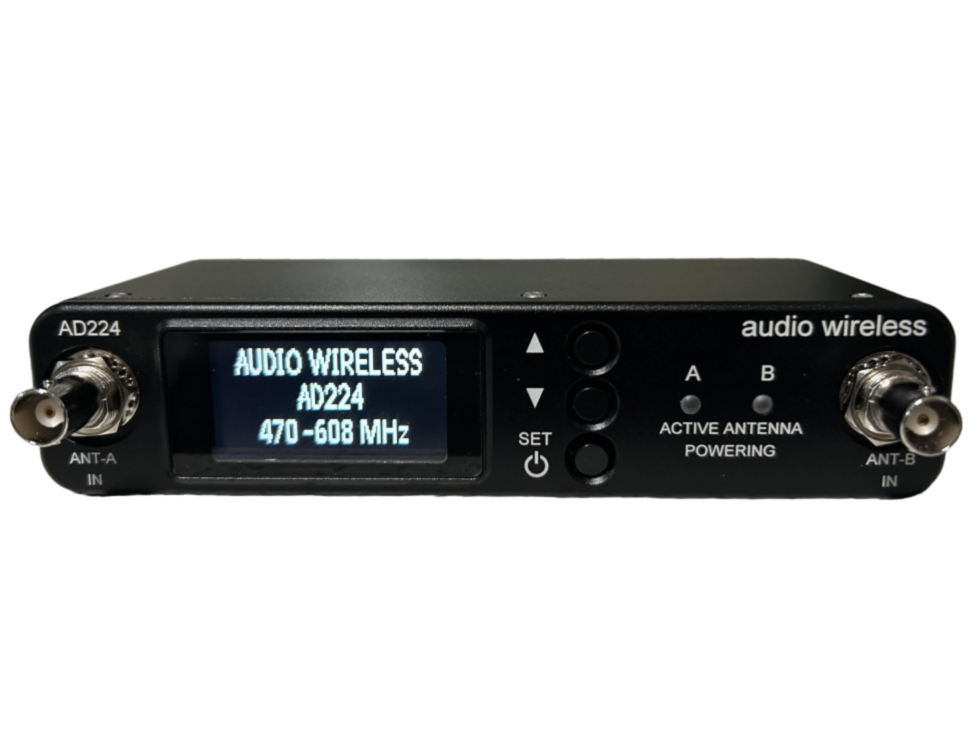

The AD224 is a 2xIN and 2x4 OUT active antenna distribution system front-end is fitted with custom tuned, high selectivity, low insertion loss bandpass filters.
The AD224 eliminates multiple receiver antennas and provides a tidy sound bag solution with improved RF performance. Advanced filtering design cleans up dirty RF within the operating bandwidth before feeding into the Diversity Receivers.
A very selective front-end filtering is now essential and important in our crowded radio frequency spectrum to protect the receivers from unwanted RF signals.
The AD224 is a custom designed Antenna Distribution (AD) system offers the solution to the antenna distribution requirements for portable sound bag applications. Designed for where the weight and size matters without sacrificing on performance.
The antenna inputs are industry standard BNC connectors which enables use of standard low loss RF coaxial extension cables, and the outputs are 2x4 mini-RF SMA connectors feeding the diversity receivers.
In applications when remote active antenna powering is needed the AD offers switchable Active Antenna Powering with RED LEDs indicating power ON/OFF status, the Active Antenna Powering can be turned ON/OFF through the high visibility large display menu.
The AD224 has an extremely high input signal handling capacity with exceptionally low noise figure RF Amplifiers and offers an outstanding inter-modulation performance when compared to other low power devices available.
The tuning bandwidth is custom tuned with a semi broadband response to suit varying applications, the system RF gain is user adjustable in 1dB steps between +6dB to -10dB, the AD224 is compatible with full-digital, digital-hybrid and analogue radio microphone receivers available in the industry.
The AD224 unit is externally powered between 10-18Vdc, the dc input connector is an industry standard 4-pin Hirose connector. The inbuilt Voltmeter continuously displays dc input voltage status.
Audio Wireless Antenna Distribution (AD) and Antenna Combiner (AC) and digitally tuned systems are now first choice among freelance sound engineers, hiring companies as well as major broadcasters for all wireless applications.
FEATURES:
- one pair of antennae feeds up to four diversity receivers
- custom tuned band-pass filtering
- user-adjustable system gain
- active antenna powering
- soft ON/OFF switch for each individual Remote Antenna powering
- industry standard connectors
- intuitive TFT display menu and LED indicators
- continuous system voltage monitoring (in-built DC Voltmeter)
- master ON-OFF switch
- CNC machined aluminium custom design
- lightweight and rugged fits neatly in any sound bag
RF DISTRIBUTION SECTION
- frequency Range: 470 to 960MHz (in bands)
- input impedance: 50 ohm
- output Impedance: 50 ohm
- gain: user adjustable +6dB to -10dB
- current consumption: 180mA@12.0V dc (depending on colour and brightness settings)
UHF BANDPASS TYPE
- available bandwidths (to order): 470-608MHz, 470-700MHz, 470-960MHz
- OIP3: > +41dBm
- port to port isolation: > 20dB (min.)
- noise figure: < 3 dB
CONNECTIONS
- RF inputs: 2x50 ohm Standard BNC sockets
- RF outputs to receivers: 8x50 ohm mini-UHF SMA sockets
- DC Power IN: 4-Pin Hirose (compatible) socket fused and protected against reversed polarity
- main ON/OFF Switch: main switch SET push button doubles for ON/OFF and SET
POWERING
- operating Voltage Range: 10-18V dc
- active Antenna Powering: switchable dc T-bias powering,12Vdc @ 250mA max, regulated for active antenna powering, short circuit protected
OUTER CASE
- dimensions : 163x67x36mm (L x W x H)
- weight: 380g
- supplied with: 8 x SMA-RA to SMA-RA RF Link cables / 2 x BNC-RA to BNC-S Antenna Extension cables
