AUDIOROOT vmDBOX-HRScc

article code
ar.vmdboxhrscc

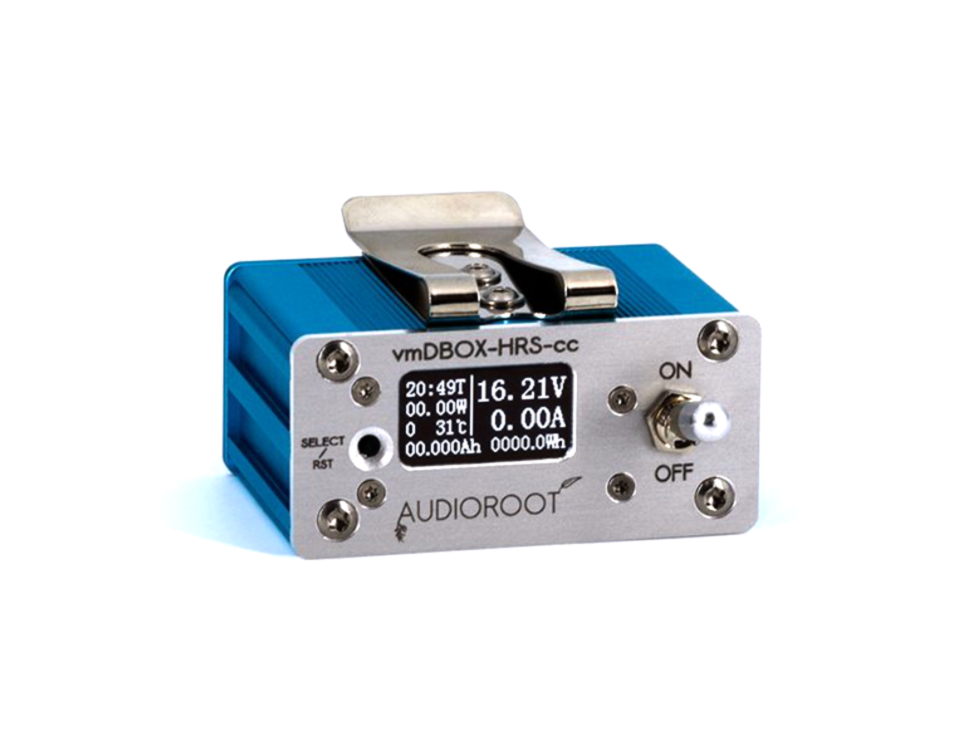

Audioroot vmDBOX-HRScc power distributor with built-in OLED Volt/Amp/Ah meter
€ 204.49 Our Price € 169.00 Our Price

The Audioroot vmDBOX-HRS-cc is an ultra-small DC power distribution box with 6 DC outputs and an integrated multi-function meter designed for ENG sound bags. All cables enter and exit from the bottom of the box yielding a much smaller footprint in your bag. The vmDBOX-HRS-cc has a DC input connector and 6 DC outs all on rugged Hirose locking connectors. 5 outputs are protected with a 2.5 amp resettable fuse. One output is left unfused.

FEATURES:

  • integrated white OLED display with Voltmeter, Ampmeter, Ahmeter, Wattmeter and timer for battery or power supply monitoring
  • 6 power outputs switchable with one rugged locking switch
  • 5 x outputs with 2.5A polyswitch resetable fuses
  • 1 x unprotected output
  • 1 x belt clip mountable on top or bottom of the housing
  • compatible with any battery or power supply ranging from 5.0V to 24V DC
  • Hirose locking connectors
  • very low power consumption : the vmDBOX-HRS-cc does not affect the battery's autonomy
  • compact and lightweight: 119g / 65 x 50 x 30 mm
  • maximum recommended total current load : 7A

More Information
BrandAudioroot
