BSRF AFB-350
article code
bsrf.afb350

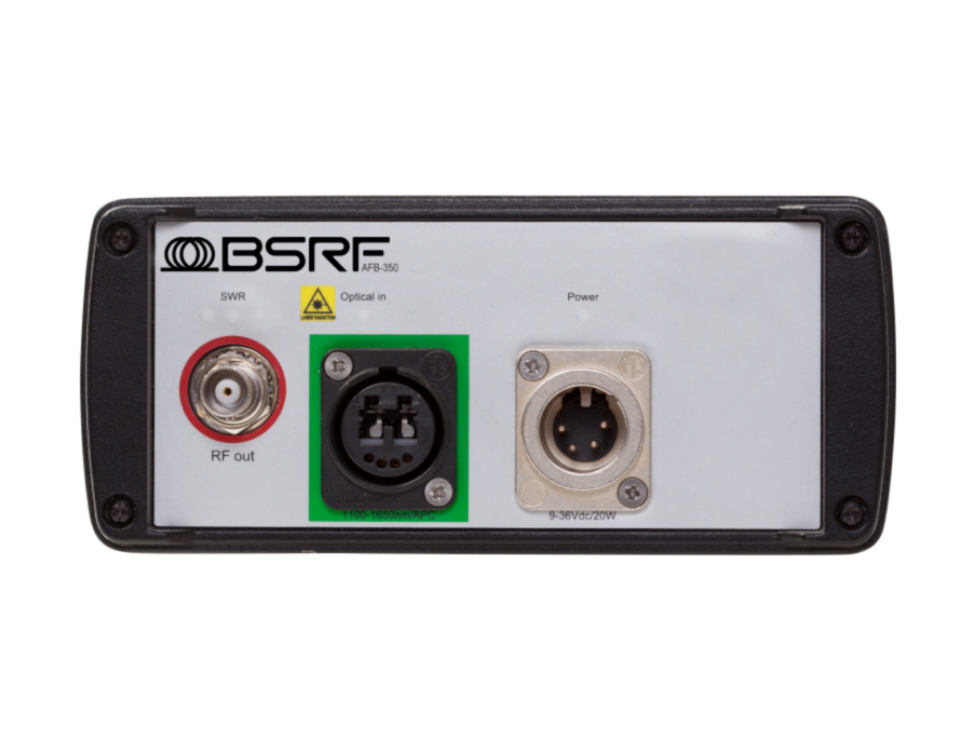

BSRF AFB-350 optical fiber to single TX antenna RF box, IP65 housing, Neutrik OpticalCon Duo APC connector, XLR4 12VDC
€ 2,795.10 Our Price € 2,310.00 Our Price
AFB-350 allows transmission of RF signal to one antenna through fiber optics. It comes with a built-in simple SWR indicator.
With its rugged housing and 12V on XLR4 power, it is designed for location or live market.
Integrated amplifier can output one carrier up to 500mw (27dBm). More carrier can be ouputed with reduced power.
- bandwidth: 100Mhz 1Ghz
- noise density: -113dBm/Hz
- IMD3: -45 dBc two carriers at 20dBm df of 1MHz
- one carrier: 500 mW
- two carriers: 100 mW
- RF output: 1xBNC 50 ohms
- optical input: opticalCon Duo Neutrik APC monomode 1310nm
- current: 800 mA
- supply: XLR4, 12W max
- dimensions: 155 x 180 x 70 mm
- weight: 1,5 Kg
| Brand | BSRF |
|---|
