DEITY THEOS DIFB KIT

article code
dei.theosdifbki

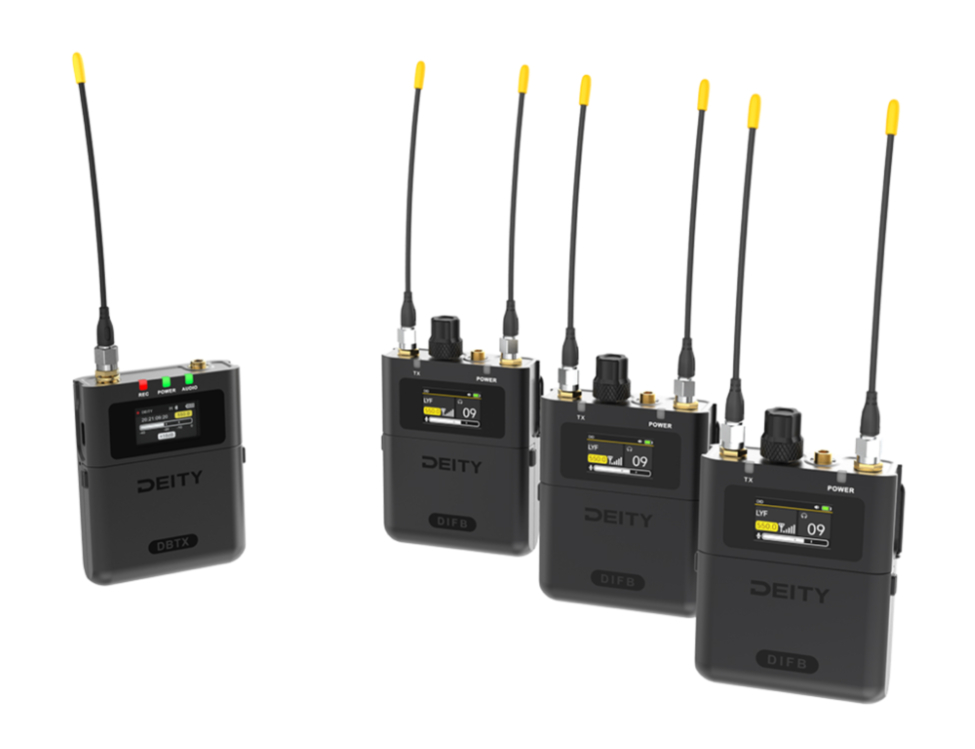

Deity THEOS DIFB Kit, incl. DBTX bodypack transmitter and 3x DIFB digital IFB receivers
€ 1,149.50 Our Price € 950.00 Our Price

The THEOS DIFB Kit (Global Unit) includes three DIFB receivers, one DBTX transmitter, a C12 cable, a set of cuttable antennas for local tuning, and four beltclips. It's a complete, coordinated package designed to spin up a professional IFB ecosystem fast-ideal for crews who want reliable cueing for clients, agency, and talent on corporate/commercial video production.

THEOS DIFB:

The Deity DIFB features a modern interface with a large color screen that makes navigating the menu and settings easy. The home screen features the current frequency and volume, controlling which one you are interacting with can easily be switched between by pushing down on the rotatory encoder.

The Deity DIFB has a tunable ultra-wideband range of 550 MHz to 960 MHz. And by using your phone's GPS, the IFB will conform to local RF rules in different countries. The app allows you to perform frequency scanning, bank library programing, bulk updating, and frequency coordination.

THEOS DBTX:

As a filmmaker, one of the most important aspects of your work is sound. There is nothing more frustrating than discovering that your audio is unusable due to interference, dropped signals or other issues. This is where the Deity Theos Digital Wireless Microphone System comes in. This state-of-the-art system is designed to make your audio recording process as seamless and stress-free as possible.

WHAT'S IN THE BOX:

  • 3x DIFB receivers
  • 1x DBTX transmitter
  • 1x C12 cable
  • 1x set of cuttable antennas for local tuning
  • 4x beltclips

DIFB SPECS:

  • RF modulation: proprietary Digital RF modulation
  • RF freq ranges: according to different regions, the legitimate frequencybands in line with local conditions are allocated
  • RF frequency step: 100kHz
  • RF bandwidth: 200kHz
  • minimum frequency interval: 700kHz
  • antenna connector: 2 x 502SMA
  • dynamic range: 105 dBm
  • distortion: < 0.5%
  • DAC Bit-Depth: 24 bit
  • battery type: 2x AA Battery
  • battery life (DEITY AA/Turn off BT): 17h
  • dimensions (H x W x D): 82.5 x 64.21 x 19.90 mm
  • weight without battery and antenna: 105.5 g
  • without battery and with antenna: 116.5 g
  • with battery and antenna: 148.59
  • operating temperature: -20°C~-45°C(-4°F~133°F)

DBTX SPECS:

  • RF modulation: proprietary digital RF modulation
  • RF power: 10mW, 25mW, 50mW
  • RF spectrum: 550 to 940 MHz
  • RF frequency step: 100 KHz
  • RF spacing:700 KHz
  • antenna connector: 50 Ohm SMA
  • dynamic range: 123dB
  • distortion: <0.5%
  • frequency response: 20 to 20 KHz
  • low cut: 0FF/75Hz/100Hz/150Hz
  • mic power: MIC-3V, MIC-5V, LINE
  • mic connector: 3.5mm TRS
  • input gain: 0 to +30dBV
  • ADC bit-depth: 24 bit
  • ADC sampling-rate: 48 kHz
