DPA 4060 CORE+
The 4060 Omni Mic is the very first miniature microphone developed by DPA from the best technology previously only used in hearing aids and measurement microphones. This microphone handles sound pressure levels up to 134 dB before clipping occurs. This mic is well suited for applications where the sound source is more remote or damped and you need to have a good balance signal versus noise.
Now available with CORE+ & MicroLock
CORE+ takes your miniature mic to the next level, neutralizing distortion across the entire dynamic range. MicroLock - A dependable, secure locking microphone connector with limitless flexibility and reassuring reliability.
BIG SOUND - SMALL FOOTPRINT
This series contains the 4060, 4061, 4062, 4063 and 4071 Omnidirectional Condenser Lavalier Mics. Each version is tailored towards a specific application based on sensitivity, voltage and placement needs. They are all based on the original 4060, the very first miniature microphone developed by DPA from the best technology previously only used in hearing aids and measurement microphones. All of the mics in the series share important basic features, but each is optimized for particular applications.
4060 MINIATURE OMNIDIRECTIONAL MICROPHONE, NORMAL SPL
This omnidirectional condenser lavalier microphone is small in size, but mighty in flexibility. Due to its miniature size, it exhibits an exceptionally accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup. The omnidirectional pattern also makes it less sensitive to handling noise as well as pop and wind noise.
FEATURES:
- exceptional audio quality
- uniform, consistent sound between DPA mics
- extremely rugged and reliable
- diminutive size made for flexible and easy concealment
- large selection of clips, windscreens, grids and other accessories
- modular adapter system fits most professional wireless systems
IN THE BOX:
- 1x 4060 omnidirectional microphone
- 1x (attached) soft boost grid
- 1x high boost grid
- directional pattern: omnidirectional
- principle of operation: pressure
- cartridge type: pre-polarized condenser
- frequency response: 20 Hz 20 kHz
- effective frequency range ±2 dB: soft boost grid: 20 Hz 20 kHz, 3 dB soft boost at 8 20 kHz. High boost grid: 20 Hz 20 kHz, 10 dB boost at 12 kHz
- sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa, -34 dB re. 1 V/Pa
- equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
- equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
- distortion, THD < 0.5%: 128 dB SPL RMS, 131 dB SPL peak
- distortion, THD < 1%: 129 dB SPL RMS, 132 dB SPL peak
- dynamic range: Typ. 106 dB
- max. SPL, THD 10%: 134 dB SPL peak
- rated output impedance: 30 40 ohm
- cable drive capability: up to 300 m (984 ft) with DAD9001 XLR Adapter
- power supply (for full performance): for wireless systems Min. 5 V max. 10 V through DPA adapter / With DAD9001: P48 (Phantom Power). Will work from 12 V
- current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9001 XLR Adapter
- connector: MicroLock, TA4F Mini-XLR, TA5F, 3-pin LEMO, 6-pin LEMO, Mini-Jack
- weight: 7.5 g incl. cable and MicroLock connector
- microphone diameter: 5.4 mm
- microphone length: 12.7 mm
- cable length: 1.8 m
- polarity: positively increasing sound pressure produces positive going voltage on MicroLock pin
- temperature range: -40°C to 45°C
- relative humidity (RH): Up to 90%
- sensitivity selection tolerance (at 1 kHz): ±1.5 dB

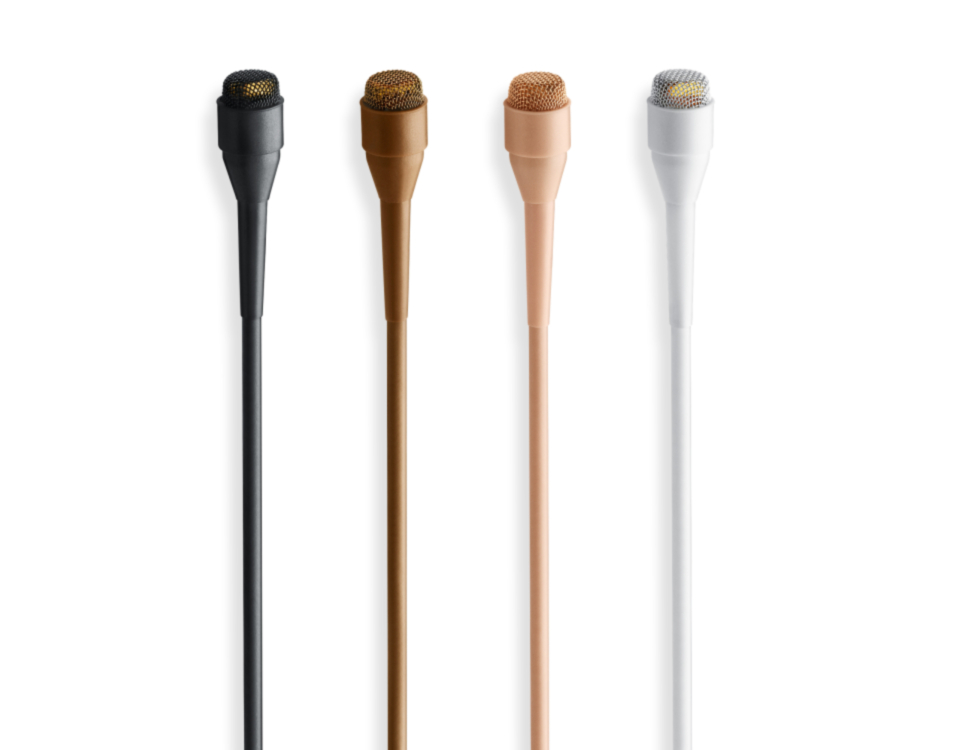

- colors: black, beige, brown, white
| Brand | DPA |
|---|
