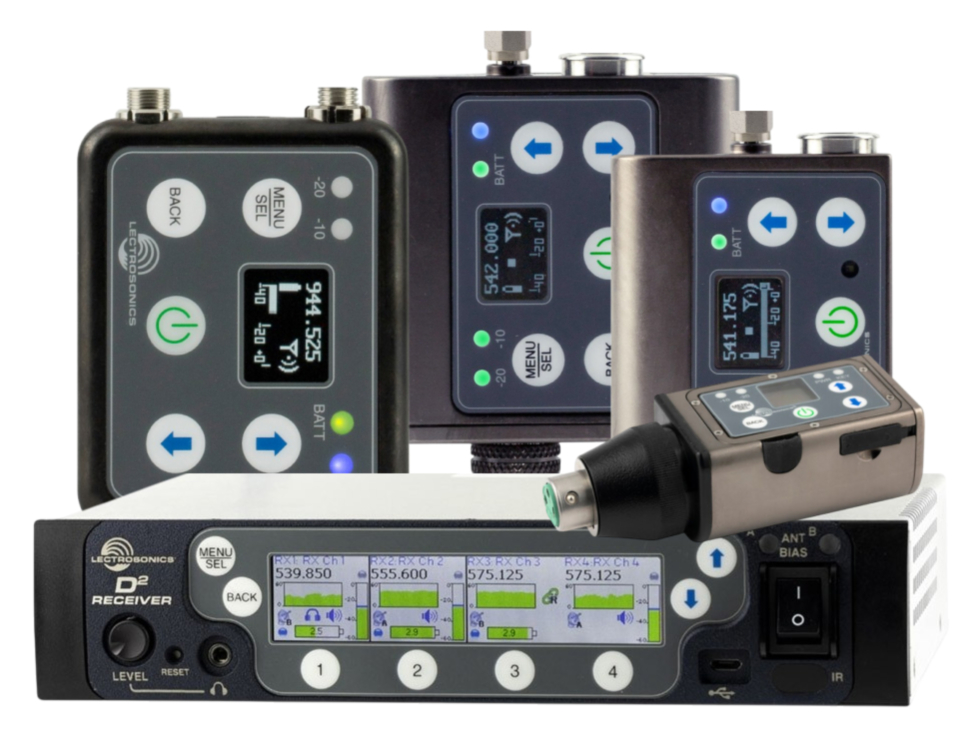

LECTROSONICS DSQD/DANTE bundle

DSQD:

The DSQD half rack receiver with analog and digital Dante network audio outputs utilizes the Lectrosonics signature digital architecture with remarkable audio quality and ultra-low latency. The receiver includes an extended operating range rivaling the best analog and Digital Hybrid Wireless systems with continuously tunable tracking filters covering 470 to 614 MHz.

The DSQD receiver is a four-channel design with a host mainframe that contains the DSP, microprocessor, antenna multicoupler and control interface. Antenna ports on the rear panel accept input from remote antennas, with a loop-thru output to another mainframe using the internal multicoupler. A kit is also available to mount antenna inputs (BNC connectors) on the front panel.

DSQD FEATURES:

• four-channel, half-rack design
• continuously tunable tracking filters covering 470.100-614.375 MHz
• compatible with D Squared, DSW, Duet and Digital Hybrid Wireless transmitters
• built-in wideband antenna multicoupler with loop-thru for additional receivers
• antenna bias power enabled from the front panel
• IR bi-directional port for transmitter setup
• analog and Dante audio outputs with TalkBack (in applicable RX modes)
• Ethernet and USB interface

DSSM:

The DSSM is the enhanced, fully digital successor to the SSM, while being IP57 rated for watertightness and offering dock charging capability.

The IP57 rating indicates that the unit is protected against dust ingress while also withstanding water immersion up to 1 meter for 30+ minutes - perfect for the most demanding work environments. All while allowing for quick battery swap-outs.

The DSSM is ideal for theater, TV, film and broadcast environments where concealment and water-resistance is required. The DSSM offers an extensive feature set and performance packed into an exceptionally compact housing, compatible with all current Lectrosonics digital receivers, including the DSQD, DCR822, DSR, DSR4, M2Ra, and DCHR.

DPRA:

This unique digital plug-on transmitter design will ideally match any microphone or line level source via a standard XLR connector. The DPR-A can tune in coarse or fine steps across the UHF television band from 470.100 to 614.375 MHz, with a selectable output power of 25 or 50 mW. The purely digital architecture supports AES 256-CTR encryption for high level security applications.

DBSM and DBSMD:

The DBSM-A1B1 and DBSMD-A1B1 digital transcorders were developed specifically for the needs of the film industry and offer time code jam sync capability. They offer hands free setup and adjustment using audible tones and can be put to sleep to conserve battery power during setup while buried inside costuming, then awakened for normal operation when the production begins. Other features include input gain adjustment in 1 dB increments over a 44 dB range and adjustable low frequency audio roll-off for 3 dB down points at 20, 35, 50, 70, 100, 120 or 150 Hz to control subsonic and very low frequency audio content. The transmitters also offer selectable output power of 10, 25 and 50 mW. A special high-density (HDM) transmit mode at 2 mW allows for ultra-tight channel spacing without concern for frequency coordination.
