LECTROSONICS MTCR

article code
lec.mtcr

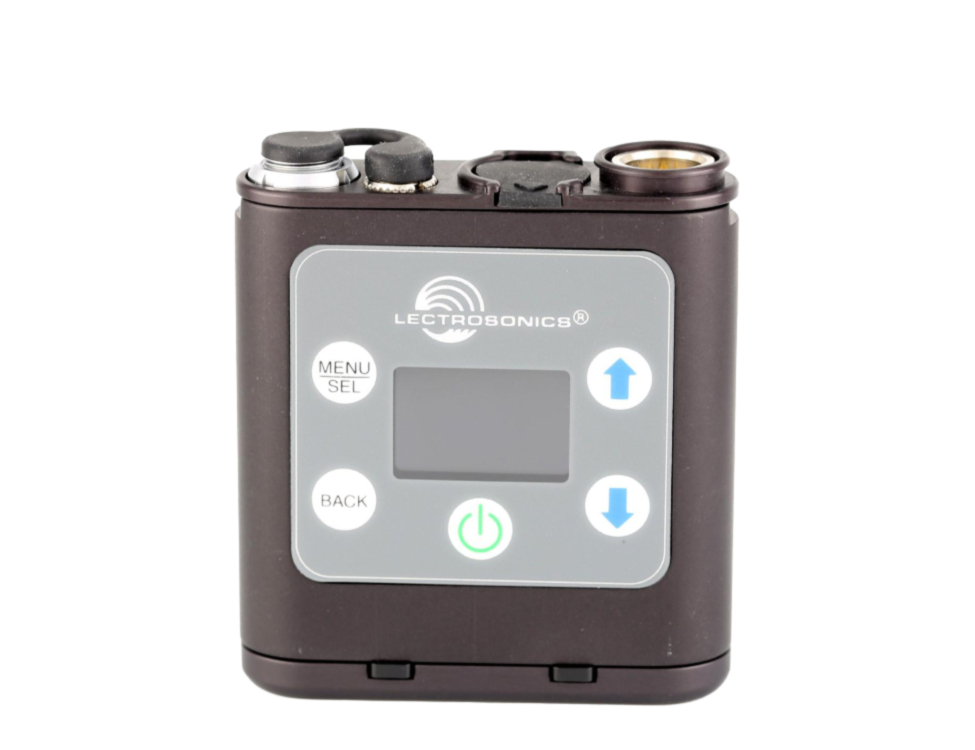

Lectrosonics MTCR portable digital audio recorder with timecode, microSD, 1x AAA battery compartment, incl. belt clip
€ 993.00 List Price
€ 1,142.24 Our Price € 944.00 Our Price

When the distance is extreme or using a wireless microphone is not practical, the MTCR recorder can travel with your subject and capture professional quality audio, synchronized with timecode. It's tiny size is unobtrusive and easily placed in garments and costumes, and easy to conceal when used as a "plant" microphone to capture environmental or location sound.

With a time code sync at the start of the production, the audio track is easily placed accurately in the timeline of a video clip. The industry standard .wav (BWF) file format is compatible with essentially any audio or video editing software.

The recorder can also be tethered to a camera to capture a higher quality or backup audio recording. The input connector is the industry standard TA5M jack that accepts any mic or line level signal and provides bias voltage to power a wide variety of electret lavaliere microphones. The input connection and wiring is compatible with microphones pre-wired for use with Lectrosonics professional wireless microphone transmitters.

Setup and adjustment is made through an intuitive interface provided by the keypad and LCD. In keeping with typical Lectrosonics mechanical designs, the housing is machined from a solid aluminum billet for the ruggedness needed in field production.

INCLUDED ACCESSORIES:

  • 1 x AAA Alkaline battery
  • 1 x microSDHC memory card
  • 1 x beltclip

FEATURES:

  • professional quality digital audio recordings in Broadcast Wave Format
  • ultra compact size for easy concealment
  • records to microSDHC memory cards
  • wide range input gain adjustment for mic to line level signals
  • time code jam/sync from external source
  • standard Lectrosonics TA5M input jack
  • Lectrosonics "servo bias" input preamp
  • solid machined aluminum construction
  • over six hours of operation on a single AAA lithium battery

RECORDING:

  • storage media: microSDHC memory card
  • file format: .wav files (BWF Broadcast Wave File)
  • A/D converter: 24-bit
  • sampling rate: 48 kHz
  • RECORDING MODES/BIT RATE:
  • HD mono mode: 24 bit 144 kbytes/s or 32 bit 192 kbytes/s
  • split gain mode: 24 bit 288 kbytes/s or 32 bit 384kbytes/s

INPUT:

  • type: analog mic/line level compatible, servo bias preamp for 2V and 4V lavaliere microphones
  • INPUT LEVEL:
  • dynamic mic: 0.5 mV to 50 mV
  • electret mic: nominal 2 mV to 300 mV
  • line level: 17 mV to 1.7 V
  • input connector: TA5M 5-pin male HEADPHONE JACK:
  • connector: 3.5 mm mini jack, TRS
  • maximum level: -3 dBu (575 mV RMS)

AUDIO PERFORMANCE:

  • frequency response: 20 Hz to 20 kHz, +0.5/-1.5 dB
  • dynamic range: 110 dB (A), before limiting
  • distortion: < 0.035%

TIMECODE:

  • connector: 5-pin LEMO
  • signal voltage: 0.5 Vp-p to 5Vp-p
  • input impedance: 10 k Ohms
  • format: SMPTE 12M 1999 compliant

BATTERY POWER/LIFE:

  • power consumption: 300 mW
  • battery type: AAA Lithium non-rechargeable (recommended)
  • AAA Lithium: 6.5 hours typical

DIMENSIONS AND WEIGHT

  • dimensions in mm : 60H x 54W x 17D
  • weight: 71 grams w/ AAA Lithium battery

More Information
BrandLectrosonics
