NEUMANN KM 120A nx

article code
ne.km120anx

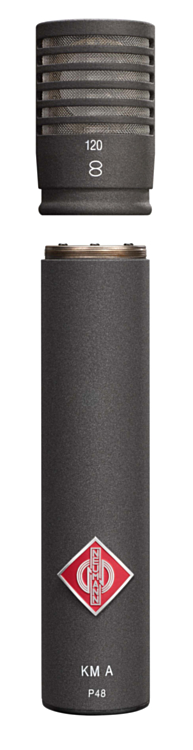

Neumann KM120Anx bi-directional microphone with analog P48V output stage, nextel black
€ 2,099.00 Our Price € 1,734.71 Our Price

The combination of the capsule KK 120 with the analog output stage KM A is only one of the numerous options within the modular Neumann KM A/D small diaphragm microphone system. Eight different small diaphragm capsules (KK 120 up to KK 185) may be combined with either an analog output stage (KM A) or a digital AES 42 output stage (KM D). A comprehensive range of accessories ensures adaptability to the most diverse fields of application.

The KK 120 is a pressure gradient transducer with figure-of-eight characteristic, side-addressed. The figure-8 pattern is realized with a single 16mm diaphragm. Thus, all sound field components reach the diaphragm directly. As a result, the frequency response curves and sensitivities for 0° and 180° are identical. The KK 120 capsule may be combined with other capsules/microphones for MS-stereo recording.

FEATURES:

  • directional characteristic: figure-of-eight
  • part of the modular microphone system KM A/D
  • comprehensive range of accessories

  • acoustical operating principle: pressure gradient transducer
  • directional pattern: figure-of-eight
  • frequency range: 20 Hz up to 20 kHz
  • sensitivity at 1 kHz into 1 kOhm: 12 mV/Pa
  • rated impedance: 50 Ohms
  • rated load impedance: 1000 Ohms
  • equivalent noise level, CCIR: 25 dB
  • equivalent noise level, A-weighted: 15 dB-A
  • maximum SPL for THD 0.5%: 140 dB
  • maximum SPL for THD 0.5% with preattenuation: 150 dB
  • signal-to-noise ratio, CCIR (re. 94 dB SPL): 69 dB
  • signal-to-noise ratio, A-weighted (re. 94 dB SPL): 79 dB
  • supply voltage (P48, IEC 61938): 48 V
  • current consumption (P48, IEC 61938): max. 3.5 mA
  • matching connector: XLR 3 F
  • weight (output stage): 70 g
  • weight (capsule only): 37 g
  • diameter: 24 mm
  • length (capsule only): 40 mm
  • length (microphone): 130 mm

More Information
BrandNeumann
