NEUMANN KK 183 nx

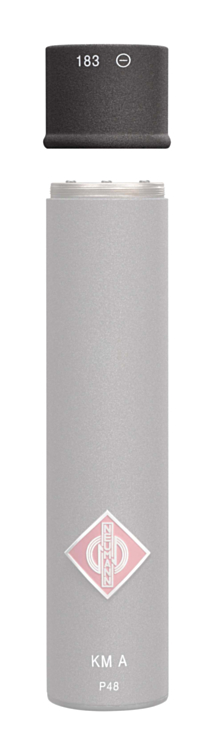

The combination of the capsule KK 183 with the output stage KM A is only one of the numerous options within the Neumann KM A/D small diaphragm microphone system. The Neumann system KM A/D is a modular microphone system for even the most demanding applications. Eight different small diaphragm capsules (KK 120 up to KK 185) may be combined with either an analog output stage (KM-A) or a digital AES 42 output stage (KM-D). All components are available in nickel or Nextel black (nx). A comprehensive range of accessories ensures adaptability to the most diverse fields of application. The KK 183 is a diffuse-field equalized pressure transducer with a free-field treble boost (approx. 7 dB at 10 kHz). The frequency response in the diffuse sound field is flat up to 10 kHz.
- directional characteristic: omni (diffuse-field equalized)
- part of the modular microphone system KM A/D
- comprehensive range of accessories
