NEUMANN KM 185A nx

article code
ne.km185anx

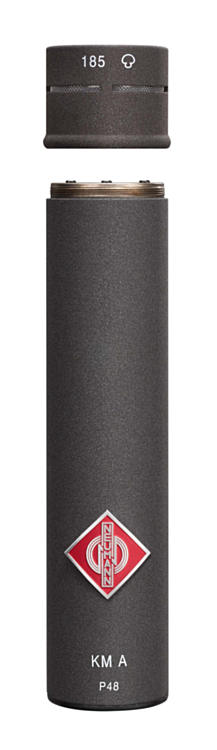

Neumann KM185Anx hyper-cardioid microphone with analog P48V output stage, nextel black
€ 1,298.00 Our Price € 1,072.73 Our Price

The combination of the capsule KK 185 with the output stage KM A is only one of the numerous options within the Neumann KM A/D small diaphragm microphone system. The Neumann system KM A/D is a modular microphone system for even the most demanding applications. Eight different small diaphragm capsules (KK 120 up to KK 185) may be combined with either an analog output stage (KM A) or a digital AES 42 output stage (KM D). All components are available in nickel or Nextel black (nx). A comprehensive range of accessories ensures adaptability to the most diverse fields of application. The KK 185 is a pressure gradient transducer with a hypercardioid characteristic. Attenuation of sound incidence from the side or rear is approximately 10 dB. Minimum sensitivity occurs at an angle of about 120°.

FEATURES:

  • directional characteristic: hypercardioid
  • part of the modular microphone system KM A/D
  • comprehensive range of accessories

  • acoustic operating principle: pressure gradient transducer
  • directional pattern: hypercardioid
  • frequency range: 20Hz to 20kHz
  • sensitivity: 10mV/Pa
  • rated impedance: 50 Ohms
  • rated load impedance: 1000 Ohms
  • equivalent noise level, CCIR: 24dB
  • equivalent noise level, A-weighted: 15dB-A
  • signal-to-noise ratio CCIR: 69dB
  • signal-to-noise ratio A-weighted: 78dB
  • max SPL (THD<0.5%): 142dB
  • max SPL (THD<0.5%) with preattenuation: 152dB
  • supply voltage (P48, IEC 61938): 48V
  • current consumption (P48, IEC 61938): max. 3.5mA
  • matching connector: XLR 3 M
  • weight output stage: 70g
  • weight capsule: 19g
  • diameter: 22mm
  • length: 108mm

More Information
BrandNeumann
