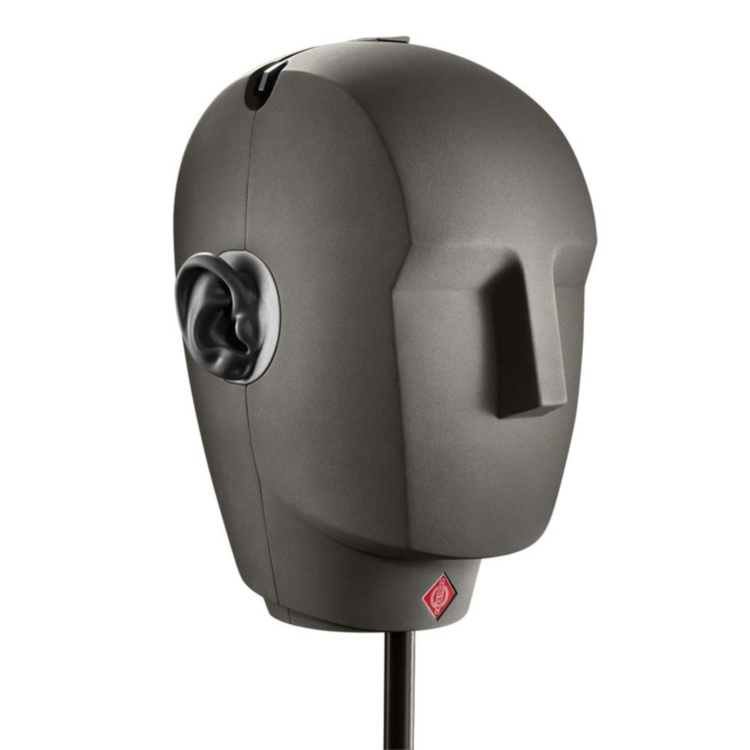

NEUMANN KU 100

article code
ne.ku100
Neumann KU100 dummy head binaural stereo microphone, incl. mains power supply, 5m XLR5 cable and XLR5F to 2x XLR3M Y-cable
€ 8,200.00 Our Price € 6,776.86 Our Price

The KU 100 is a dummy head microphone for a truly immersive binaural listening experience with headphones. Although it uses only two channels, its spatial depiction appears three dimensional and shockingly realistic. The KU 100 can be used to great effect in music and audio drama productions. Moreover, KU 100 recordings are loudspeaker compatible.

FEATURES:

  • dummy head microphone for immersive sound experience with headphones
  • loudspeaker compatible
  • natural sound with flat diffuse field response
  • transformerless circuitry for low noise and distortion
  • switchable pad and dual stage low cut

  • acoustical operating principle: pressure transducer
  • directional pattern: ear
  • frequency range: 20 Hz up to 20 kHz
  • sensitivity at 1 kHz into 1 kOhm: 20 mV/Pa
  • rated impedance: 50 Ohms balanced, 200 Ohms unbalanced
  • rated load impedance: 1 kOhms
  • equivalent noise level, CCIR: 29 dB (23 dB lt. BA)
  • equivalent noise level, A-weighted: 16 dB-A
  • maximum SPL for THD 0.5%: 135 dB
  • maximum SPL for THD 0.5% with preattenuation: 145 dB
  • signal-to-noise ratio, CCIR (re. 94 dB SPL): 65 dB
  • signal-to-noise ratio, A-weighted (re. 94 dB SPL): 78 dB
  • maximum output voltage: 8 dBu
  • supply voltage (P48, IEC 61938): 48 V +/4 V / 6 x 1.5 V
  • current consumption (P48, IEC 61938): 2 x 3.5 mA
  • battery supply: 6 x 1.5 V (AA) "round cell"
  • external power supply unit (supplied): 9 V
  • matching connector: XLR 3 F / XLR 5 F
  • weight KU 100 without batteries: approx. 3500 g
  • weight with carrying case: approx. 9500 g
  • height: 280 mm / 360 mm (case)
  • width: 180 mm / 390 mm (case)
  • depth: 220 mm / 260 mm (case)
