NEUMANN U 67 Set

article code
ne.u67set

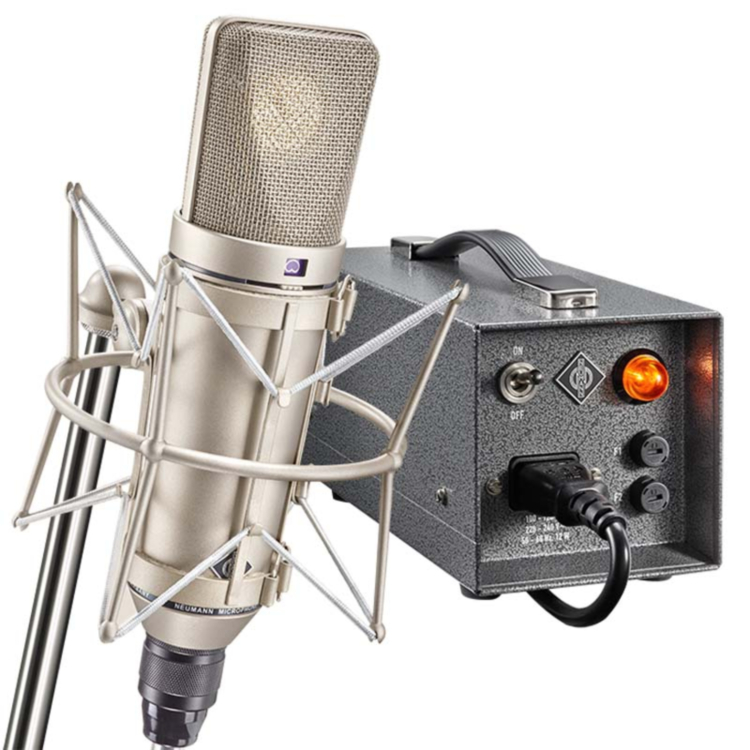

Neumann U67 Set large diaphragm tube microphone with 3 selectable polar patterns, incl. NU67V power supply, UC5 connection cable, Z48 elastic suspension and vintage case, nickel
€ 5,995.01 Our Price € 4,954.55 Our Price

Introduced in 1960, the U 67 was the quintessential studio workhorse throughout the formative years of modern music. Today, more than ever, its inimitably smooth sound continues to be in high demand. Now, for the first time in decades, Neumann's legendary tube microphone is back in production, built to the original specifications.

The U 67 is a universal studio microphone suitable for all applications. Its smooth top-end with a subtle tube shimmer makes the U 67 an outstanding vocal microphone. Due to its essentially linear response in three polar patterns - omni, cardioid, and figure-8 - the U 67 is also a very versatile microphone for all kinds of instruments such as strings, woodwinds, brass, piano, drums, acoustic and electric guitar, bass guitar and upright bass.

FEATURES:

  • classic tube circuit, transformer balanced
  • balanced sound in three polar patterns
  • meticulously reproduced to original specifications
  • vintage case, handmade in Germany

  • acoustical operating principle: pressure gradient transducer
  • directional pattern: omnidirectional, cardioid, figure-8
  • frequency range: 20 Hz up to 20 kHz
  • sensitivity at 1 kHz into 1 kohm: 15/24/16 mV/Pa +/1 d (omni/cardioid/8)
  • rated impedance: 200 Ohms
  • rated load impedance: 1 kOhms
  • equivalent noise level, CCIR 1 32/28/31 dB (omni/cardioid/8)
  • equivalent noise level, A-weighted: 21/17/20 dB-A (omni/cardioid/8)
  • maximum SPL for THD 0.5%: 114 dB (cardioid)
  • maximum SPL for THD 0.5% with preattenuation: 124 dB
  • signal-to-noise ratio, CCIR (re. 94 dB SPL): 62/66/63 dB (omni/cardioid/8)
  • signal-to-noise ratio, A-weighted (re. 94 dB SPL): 73/77/74 dB(Omni/cardioid/8)
  • maximum output voltage: -9.8 dBu
  • power supply: NU 67 V
  • matching connector: microphone 7pin, power supply XLR 3
  • weight: 560 g
  • diameter: 56 mm
  • length: 200 mm

More Information
BrandNeumann
