DPA 4017B

article code
r.micod4017b

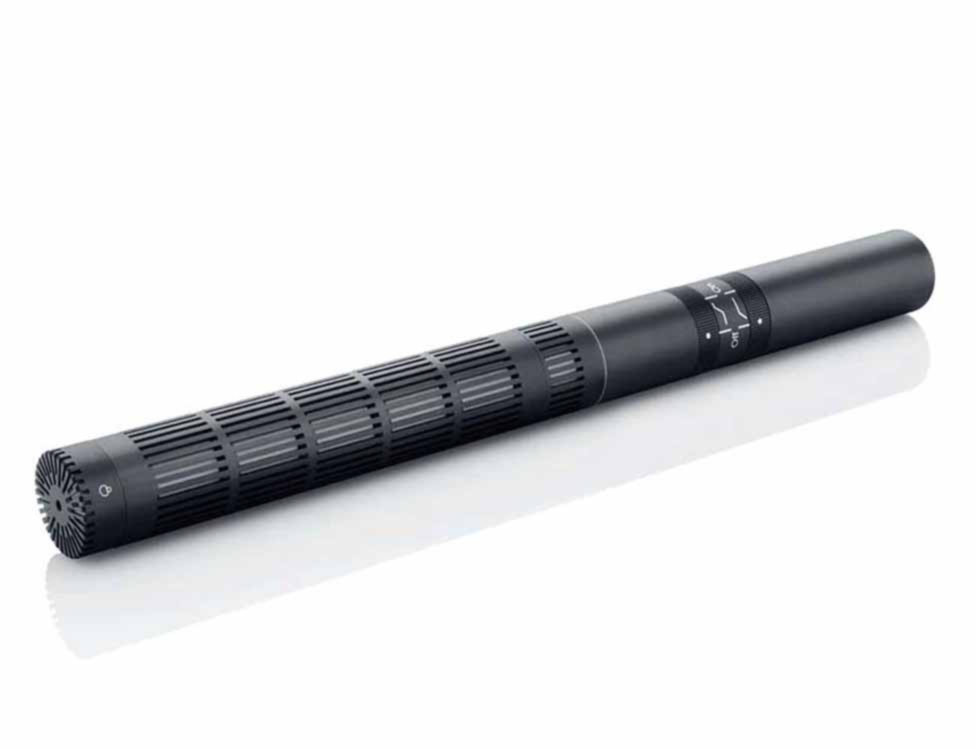

DPA 4017B shotgun microphone
€ 16.94 € 14.00

To receive a rental quote & check equipment availability:



Log in to your account or register (not obligatory).

Add the equipment you need to your "rental request".



Select the rental period and submit the request.

A confirmation email will be sent.



Our rental staff will contact you within 2 working days to discuss availability and cost and finalise your reservation.



Notes:

Final pricing and availability of equipment only after written confirmation by our rental staff.

For multi day rates please check the table on the website or contact us.

For more info on our rental procedures please visit our FAQ or contact us.

DPA 4017B is available to buy in increments of 1
  • Directional pattern: supercardioid, lobe-shaped
  • Principle of operation: pressure gradient, with interference tube
  • Cartridge type: pre-polarized condenser
  • Frequency range: 20Hz to 20kHz, permanent third order high pass filter at 50Hz
  • Frequency range, +/-2dB, at 60cm: 70Hz to 18kHz with typ. 3dB soft boost at 15kHz
  • Sensitivity, nominal, +/-2dB at 1kHz: 19mV/Pa, -34.4dB re. 1V/Pa
  • Equivalent noise level, A-weighted: typ. 13dB(A) re. 20uPa (max. 15dB(A))
  • Equivalent noise level, ITU-R BS.468-4: typ. 24dB (max. 26 dB)
  • S/N ratio (A-weighted), re. 1kHz at 1Pa (94dB SPL): typ. 81dB(A)
  • Total harmonic distortion (THD): <1% up to 137dB SPL peak
  • Dynamic range: typ. 124dB
  • Max. SPL, peak before clipping: 138dB
  • Switchable attenuator, filters etc.: high boost-> +4dB at 8kHz, low cut-> first order filter, below 120Hz
  • Output impedance: 100Ohm
  • Minimum load impedance: 2kOhm
  • Cable drive capability: 100m
  • Output balance principle: signal balanced
  • Common mode rejection ratio (CMRR): >40dB
  • Power supply (for full performance): 48V Phantom power (+/-4V)
  • Current consumption: 4.5mA
  • Connector: XLR-3M. pin 1: shield, pin 2: signal + phase, pin 3: phase
  • Color: matte black
  • Weight: 68g
  • Microphone/capsule diameter: 19/19mm
  • Microphone length: 212mm
  • Maximum output voltage, RMS: 2V
  • Polarity: +V at pin 2 for positive sound pressure
  • Temperature range: -40°C to 45°C
  • Relative humidity (RH): up to 90%
