DPA 5100

article code
r.mistd5100

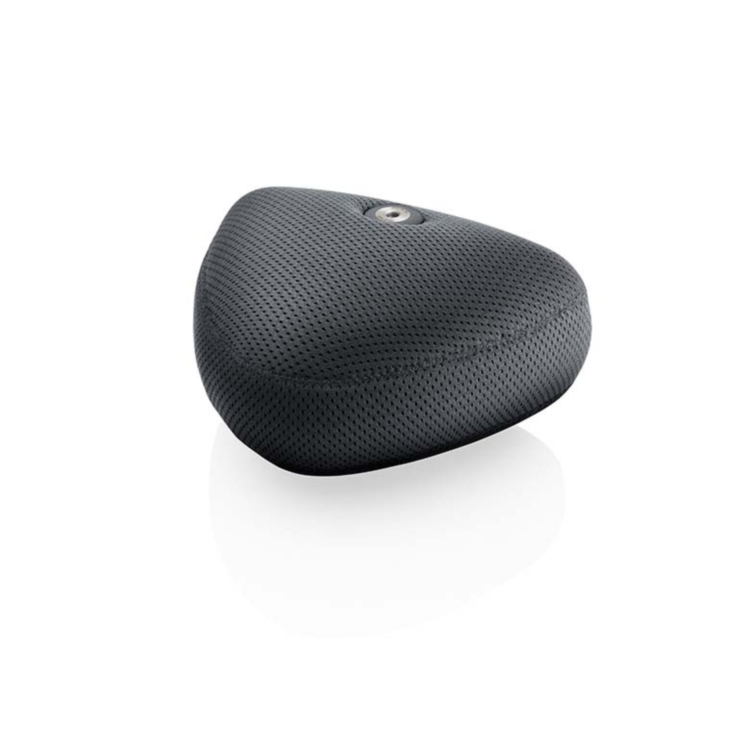

DPA 5100 mobile 5.1 surround microphone
€ 36.30 € 30.00

To receive a rental quote & check equipment availability:



Log in to your account or register (not obligatory).

Add the equipment you need to your "rental request".



Select the rental period and submit the request.

A confirmation email will be sent.



Our rental staff will contact you within 2 working days to discuss availability and cost and finalise your reservation.



Notes:

Final pricing and availability of equipment only after written confirmation by our rental staff.

For multi day rates please check the table on the website or contact us.

For more info on our rental procedures please visit our FAQ or contact us.

DPA 5100 is available to buy in increments of 1
  • Directional pattern: directional
  • Principle of operation: pressure, with interferece tube and separation baffles
  • Cartridge type: pre-polarized condenser
  • Frequency range L/C/R/LS/RS: 20Hz to 20kHz
  • Frequency range LFE: 20Hz to 120Hz
  • Frequency range, +/-2dB L/C/R: 200Hz to 16kHz
  • Frequency range, +/-2dB LS/RS: 100Hz to 12kHz
  • Frequency range, +/-2dB LFE: 20Hz to 120Hz
  • Sensitivity, nominal, +/-3dB at 1kHz L/C/R: 26mV/Pa
  • Sensitivity, nominal, +/-3dB at 1kHz LS/RS: 28mV/Pa
  • Equivalent noise level, A-weighted L/C/R: typ. 18dB(A) (max. 21dB(A))
  • Equivalent noise level, A-weighted LS/RS: typ. 20dB(A) (max. 23dB(A))
  • Equivalent noise level, ITU-R BS.468-4 L/C/R: typ. 29dB (max. 32dB)
  • Equivalent noise level, ITU-R BS.468-4 LS/RS: typ. 31dB (max. 34dB)
  • S/N ratio (A-weighted), re. 1kHz at 1Pa (94dB SPL) L/C/R: typ. 76dB(A)
  • S/N ratio (A-weighted), re. 1kHz at 1Pa (94dB SPL) LS/RS: typ. 74dB(A)
  • Total harmonic distortion (THD): <1% up to 123dB SPL peak
  • Dynamic range L/C/R/LS/RS: 103 dB
  • Dynamic range LFE: 100 dB
  • Max. SPL, peak before clipping: 132dB
  • Output impedance: 50Ohm
  • Cable drive capability: 100m
  • Output balance principle: active signal balanced
  • Common mode rejection ratio (CMRR): >60dB, 50Hz to 20kHz
  • Power supply (for full performance): 48V Phantom power
  • Current consumption: typ. 5mA (max. 5.5mA)
  • Connector: Lemo multipin
  • Color: black
  • Weight: 500g
  • Microphone dimentions: (W) 240 mm, (H) 140 mm, (D) 195 mm
  • Capsule diameter: 5.4mm
  • Cable length: 5m
  • Cable color: black
  • Cable diameter: 9.3mm
  • Maximum output voltage, RMS L/C/R/LS/RS: 1.8Vrms/2.5Vpeak
  • Maximum output voltage, RMS LFE: 1Vrms/1.4Vpeak
  • Polarity: positive
  • Temperature range: -40°C to 45°C
  • Relative humidity (RH): up to 90%
