Schoeps CCM MS-cardio stereo kit

article code
r.mistschmsccm4
Schoeps CCM8 + CCM4 MS microphone pair, with Cinela Zephyx
€ 36.30 Our Price € 30.00 Our Price

To receive a rental quote & check equipment availability:



Log in to your account or register (not obligatory).

Add the equipment you need to your "rental request".



Select the rental period and submit the request.

A confirmation email will be sent.



Our rental staff will contact you within 2 working days to discuss availability and cost and finalise your reservation.



Notes:

Final pricing and availability of equipment only after written confirmation by our rental staff.

For multi day rates please check the table on the website or contact us.

For more info on our rental procedures please visit our FAQ or contact us.

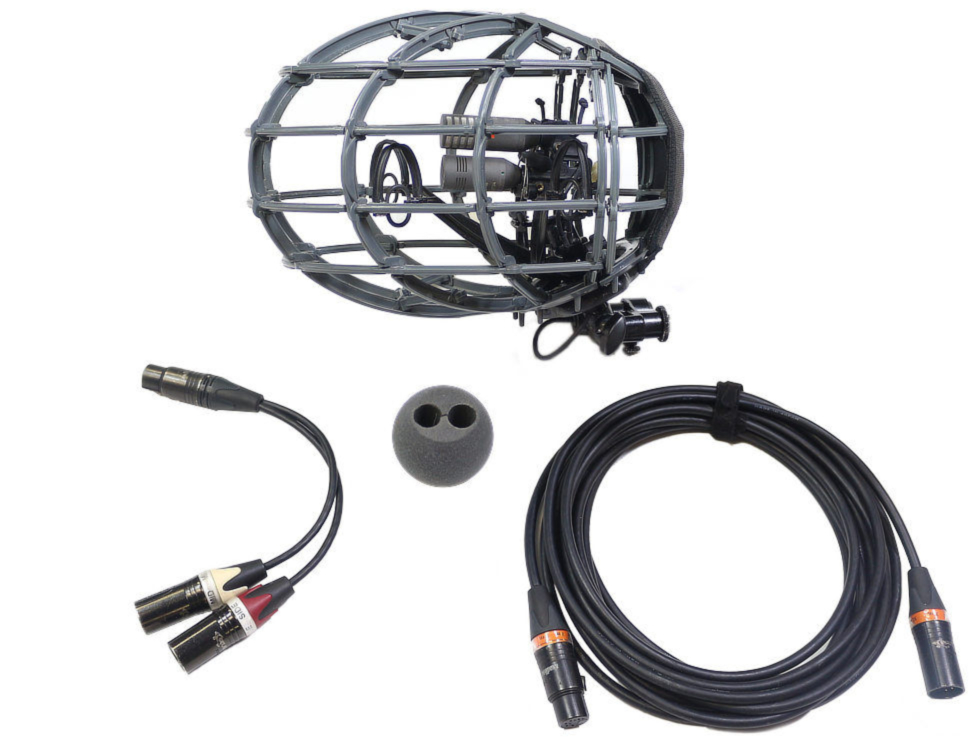

KIT INCLUDES:

• 1x Schoeps CCM8Lg bi-directional microphone
• 1x Schoeps CCM4Lg cardioid microphone
• 1x Schoeps CMC6 U microphone pre-amplifier
• 1x Schoeps MK4g cardioid microphone capsule
• 1x Cinela Zephyx microphone windshield system for Schoeps doubleMS
• 1x Canare LCR microphone cable XLR7M / XLR7F, 5m
• 1x Audio LCR split cable, XLR7F / 3x XLR3M, 30cm
• 1x Cinela Zephyx travel case

CCM8:

  • Current consumption with 12V: 8mA
  • Current consumption with 48V: 4mA
  • Impedance: 90Ohms
  • Minimum recommended load impedance: 600Ohms
  • Low-cut frequency: 20Hz
  • Length (L version) without connector: 46 to 58mm
  • Length (U version): 46 to 58mm
  • Diameter: 20mm
  • Weight (U-version): 33grs
  • Weight (L-version): 43grs
  • Surface finish: matte gray
  • Frequency range: 40Hz to 16kHz
  • Sensitivity: 10mV/Pa
  • Equivalent noise level (A-weighted): 18dB-A
  • Equivalent noise level (CCIR): 26dB
  • Signal-to-noise ratio (A-weighted): 76dB-A
  • Maximum sound pressure level at 0.5% THD: 134dB-SPL

CCM4:

  • Current consumption with 12V: 8mA
  • Current consumption with 48V: 4mA
  • Impedance: 90Ohms
  • Minimum recommended load impedance: 600Ohms
  • Low-cut frequency: 20Hz
  • Length (L version) without connector: 46 to 58mm
  • Length (U version): 46 to 58mm
  • Diameter: 20mm
  • Weight (U-version): 33grs
  • Weight (L-version): 43grs
  • Surface finish: matte gray
  • Frequency range: 40Hz to 20kHz
  • Sensitivity: 13mV/Pa
  • Equivalent noise level (A-weighted): 15dB-A
  • Equivalent noise level (CCIR): 24dB
  • Signal-to-noise ratio (A-weighted): 79dB-A
  • Maximum sound pressure level at 0.5% THD: 132dB-SP
