Zaxcom URX100

article code
r.wiiezaxurx100

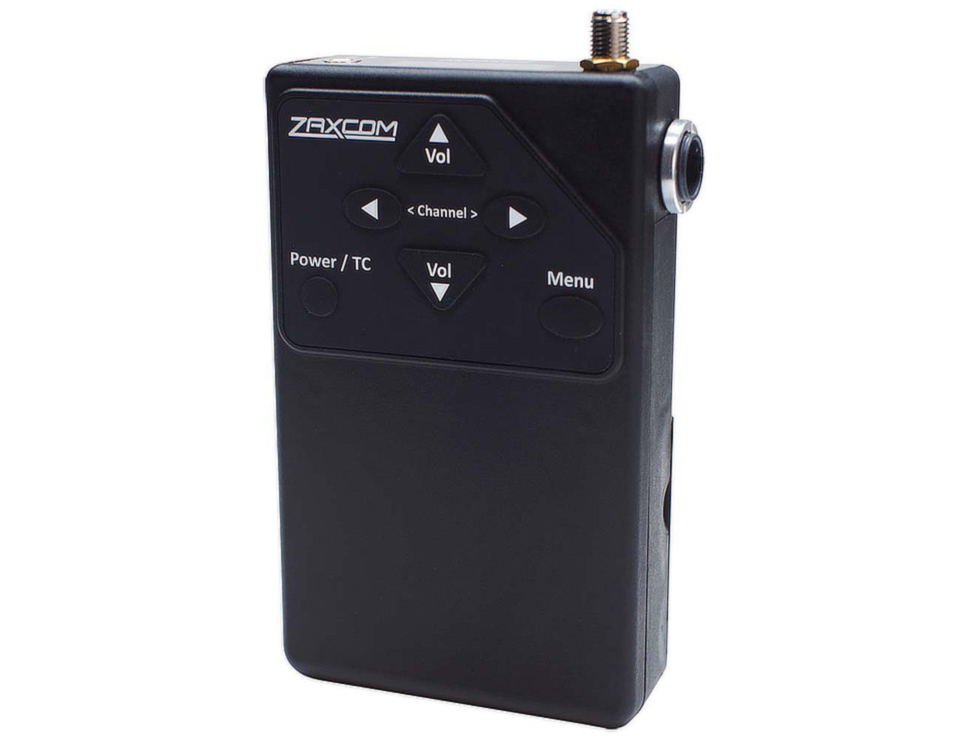

Zaxcom URX100 multipurpose 2-channel receiver (512-698 MHz)
€ 24.20 Our Price € 20.00 Our Price

To receive a rental quote & check equipment availability:



Log in to your account or register (not obligatory).

Add the equipment you need to your "rental request".



Select the rental period and submit the request.

A confirmation email will be sent.



Our rental staff will contact you within 2 working days to discuss availability and cost and finalise your reservation.



Notes:

Final pricing and availability of equipment only after written confirmation by our rental staff.

For multi day rates please check the table on the website or contact us.

For more info on our rental procedures please visit our FAQ or contact us.

Zaxcom URX100 is a multipurpose UHF receiver that can be configured as a camera link receiver, an IFB receiver with walkie talkie interface or a standalone IFB receiver with timecode view and delay. It's Zaxcom's most flexible receiver for monitoring production sound.

Robust and reliable, the URX100 is capable of monitoring any Zaxcom Digital Recording Wireless transmitter. As a UHF diversity receiver it utilises Zaxcom's tuneable tracking front end filter to combat interference and extend range. Two antennas -one internal, the other external- offer dropout resistance while receiving audio. Audio is encrypted to maximise privacy and operating distances can exceed 500 feet. The receiver is also a low-cost solution for getting audio and timecode to camera. There are two modes of operation: stereo audio output or mono audio output with SMPTE timecode that is sub-frame accurate. Stereo audio or balanced mono audio is output from the 3.5mm headphone jack. SMTPE timecode and mono unbalanced audio is output from the auxiliary TA5 connector.

The URX100 can be connected to the remote speaker/mic port of a walkie talkie. You can route the walkie talkie audio left, right or center by the URX100 and/or mix the walkie audio with the URX100 receiver audio. This configuration allows both the URX100 and walkie talkie audio to be heard at the same time with a single pair of headphones when using the optional URXL1 lanyard. This lanyard contains a push-to-talk button and a microphone to allow the lanyard to function as a remote microphone for the walkie. Volume control is also provided from the lanyard and any headphone with a 3.5mm jack can be plugged directly into the URXL1. The URX100 is compatible with the most common brands of walkies.

As an IFB receiver, you can listen to mono or stereo audio and view timecode on the OLED display. Up to six frames of programmable delay allow for synchronisation with video village. When using the optional URXL1 lanyard, you can listen to both the IFB audio and walkie talkie audio. You can talk back using the built-in URXL1 microphone and adjust the volume. The URX100 can also monitor a stereo signal or route the audio to left, right and both ears as a mono mix. The stereo signal can be selected at the URX100 so that a boom operator can monitor one of two transmitted channels that can include a public IFB feed as well as a private communication channel. This monitored audio can also be combined with the audio from a connected walkie with left, right or center routing.

The URX100 is lightweight at 127g. A front panel provides controls for channel selection and volume adjustment and a top screen displays channel names. The URX100 is powered by 3x AA batteries providing up to 10 hours or runtime with lithium batteries and alkaline lasting up to 8 hours.

FEATURES:

  • 3 configurations: camera link receiver, IFB with walkie talkie or standalone IFB
  • robust and reliable
  • antennas provide dropout resistance
  • audio encryption
  • multiple walkie talkie routing options
  • listen to mono/stereo signal or view timecode on OLED display
  • programmable delay
  • listen to both IFBas walkie talkie audio simultaneously
  • easy-to-use interface
  • lanyard (sold separately) functions as remote microphone & volume control
  • RECEIVER
    • Receiver RF Channels: 1
    • Diversity method: antenna switching
    • RF Modulation: proprietary digital method
    • RF Frequency Range: 512 to 698 MHz
    • RF Frequency Step: 100 KHz
    • RF Signal Bandwidth: 200 KHz
    • Channel Separation: 500 KHz (700 KHz recommended)
    • Sensitivity: -114 dBm
    • Antenna Connector: 50-ohm SMA female
    • Receiver Audio – Analog Output
    • Dynamic Range: 110 dB
    • Distortion: 0.002%
    • Frequency Range: 20Hz to 16kHz
    • DAC Bit-depth: 24 bits
    • Connector: TA-5M
  • AUDIO OUTPUT
    • Impedance: 16 ohms
    • Output Power: 100 mW
    • Output Type: Headphone driver
    • Output connector: 3.5 mm
    • Mode: 2-Channel unbalanced or 1-Channel balanced
    • Max Output Level: +12 dBm
  • TIMECODE
    • Timecode output connector: TA5 Male
    • Timecode output level: .01VPP – 3VPP Variable
    • Time code output rate: 23.98, 24, 25, 29.97 ND, 29.97 DF, 30
  • TA5 AUXILIARY CONNECTOR
    • Timecode output, Left audio out, Walkie Microphone out, Walkie Audio return
  • POWER
    • Internal Power: 3 AA Batteries
    • Li-Ion Battery Life: Up to 11 hours
    • NiMH Battery Life: Up to 9 hours
    • Alkaline Battery life: Up to 7 hour
  • MISC.
    • TA5 Auxiliary Connector
    • Timecode output, Left audio out, Walkie Microphone out, Walkie Audio return
    • Weight: 4.5 oz without batteries
    • Dimensions: 4.1” x 2.5” x .9”
    • Display: Graphic OLED Panel
