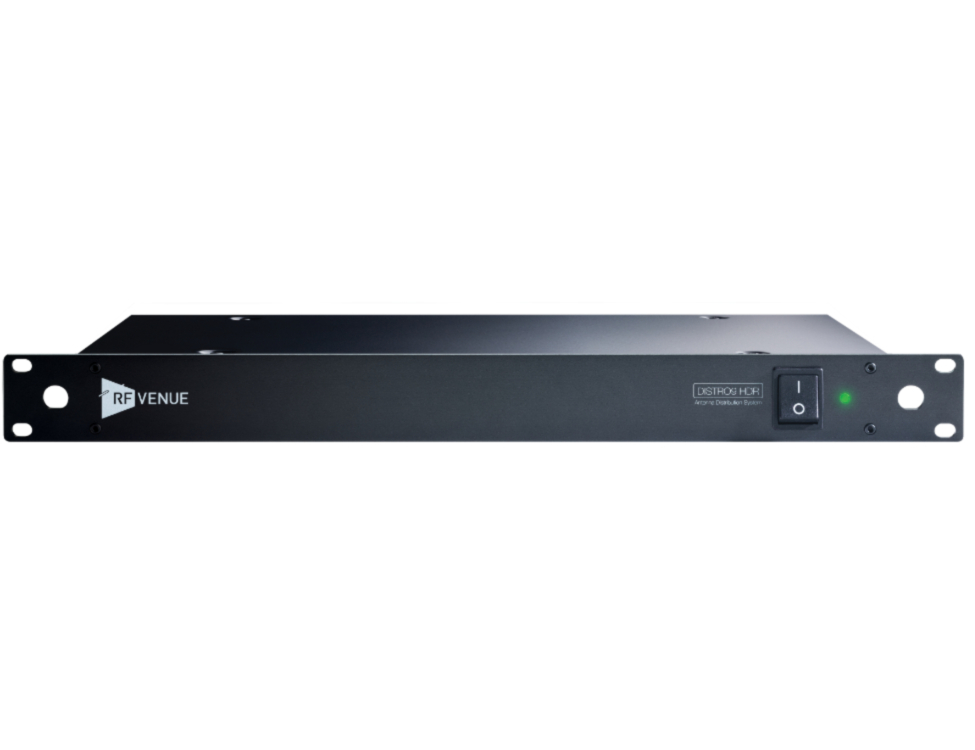

RF VENUE DISTRO9 HDR

article code
rfv.distro9e
RF Venue DISTRO9 HDR multi-zone antenna distribution amplifier, 2x 2:9, 50-1000 MHz
€ 2,430.00 List Price
€ 2,649.00 Our Price € 2,189.26 Our Price

The DISTRO9 HDR represents a unique approach to high quality RF signal distribution for wireless microphones. The DISTRO9 saves time and rack space by offering 9 outputs and inputs for 2 zones in just one rack space. And each output is clean: DISTRO9 HDR employs low noise figure amplifiers and superior gain structure providing a high dynamic range over the spectrum.

The DISTRO9 HDR makes multi zone installations easy by providing two zone antenna inputs, this allows for coverage of large areas or multiple rooms and has DC power available for in-line amplifiers or active antennas.

Any of the DISTRO9's clean unity gain RF outputs can be cascaded to a second DISTRO9, eliminating the need for dedicated cascade ports and providing up to 17 wireless microphone channels in just 2RU of rack space.

With superior gain flatness across VHF, T-Band, and UHF, the DISTRO9 HDR is built for the rapidly changing RF spectrum landscape worldwide.

FEATURES:

  • high end RF performance at a competitive price
  • works with all manufacturers
  • includes AC power cord

  • frequency range: 50 to 1000 MHz (VHF, UHF, +900 bands)
  • RF output level (gain):± 3dB
  • output connection isolation: 60dB @ 510MHz, 80dB @ 200 MHz
  • third order intercept point: 15dBm @ VHF, 20+ @ UHF
  • impedance: 50 Ohm
  • power requirements: 50/60 Hz, 2A
  • fuse: T3.15A/250V
  • input AC voltage: 100 to 240 VAC
  • DC over coax (to external antennas): 12 VDC 100mA
  • output DC voltage (to receiver jacks): 12V 3A
  • output DC connectors: Anderson power pole
  • dimensions (W x H x D x W in mm): 480 x 45 x 250 x 19
  • unit weight: 2.7 Kg
