SANKEN CUB-01

article code
sa.cub01xx

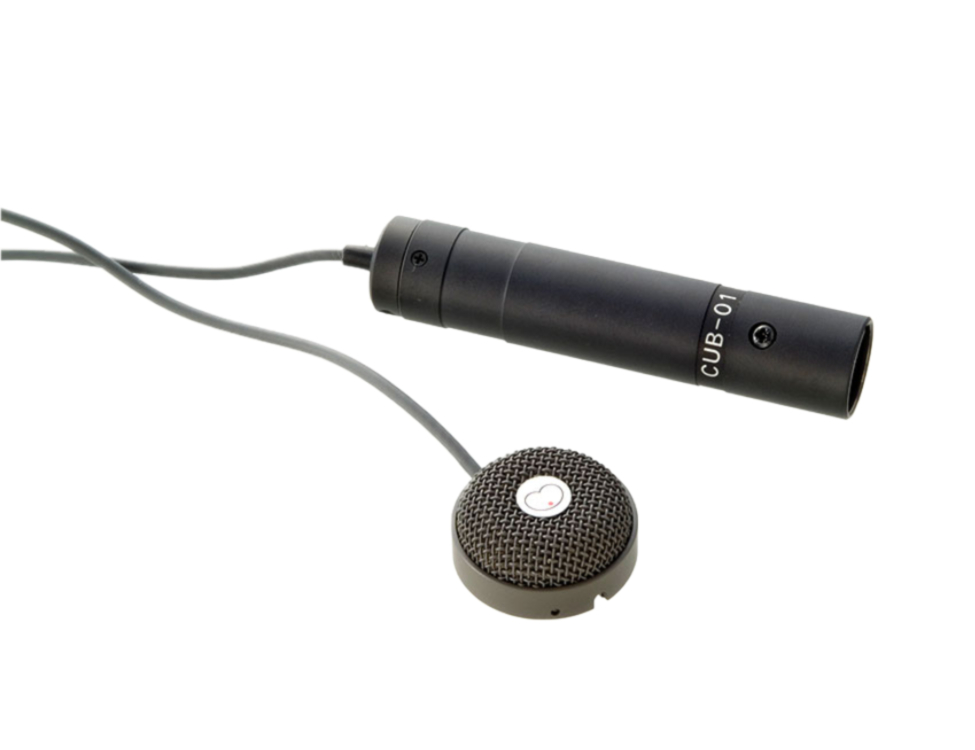

Sanken CUB-01 miniature boundary microphone, hardwired Ph 48V XLR power supply
As low as € 603.79 Our Price € 499.00 Our Price

With the CUB-01 it is possible to capture a full bodied and clear sound. Narration and dialogue are clearly caught while excluding unnecessary background noise. Sanken's revolutionary design has also eliminated the artificial need to overdesign the acoustic construction to create cardioid directivity.

Engineered for use in many situations, from TV and film field shooting to broadcast studio production and conference table recording, the CUB-01 departs from the common design of the boundary mic, which typically requires a large, heavy plate. By comparison, the CUB-01 is unbelievably small (32mm diameter, 12mm height, 45g weight) and light.

Because of its size, it is easy to conceal from the camera, and can be positioned in a variety of environments - for example, attached to the ceiling of a car with two-sided sticky tape. The CUB-01 is available in grey or beige and in two versions - the standard high performance CUB-01 which runs on 48 volt phantom and the CUB-01-PT (pigtail) version. The PT version will operate on 3 to 10 VDC for wireless applications.

FEATURES:

  • clear and rich sound
  • small and easy to conceal unlike other boundary mics
  • wide 60Hz to 16kHz frequency response
  • sound energy in the high frequencies is identical with the mid and lows
  • perfect for TV and film field shooting, broadcast studio production and conference table recording
  • Sanken design that overcomes the limitations of previous boundary microphones
  • available in grey or beige
  • available with XLR3 connector or pigtail

  • directivity: cardioid (front side of hemisphere)
  • transducer: self-polarised condenser
  • frequency range: 60Hz to 15kHz
  • sensitivity (nominal at 1kHz): 40mV/Pa (-28dB, 0dB=1V/Pa)
  • equivalent noise level (A-weighted): 16dB-A
  • max SPL (1% THD): 120dB SPL
  • output impedance at 1KHz: 180Ohms
  • powering: +48V (+/-4V) phantom power
  • current consumption: less than 1.8mA
  • weight: 45g (including cable) , 55g (48V I/F)
  • dimensions: 32.5 (diameter) X 14.0 in mm
