SCHOEPS V4 U b

article code
sch.142001

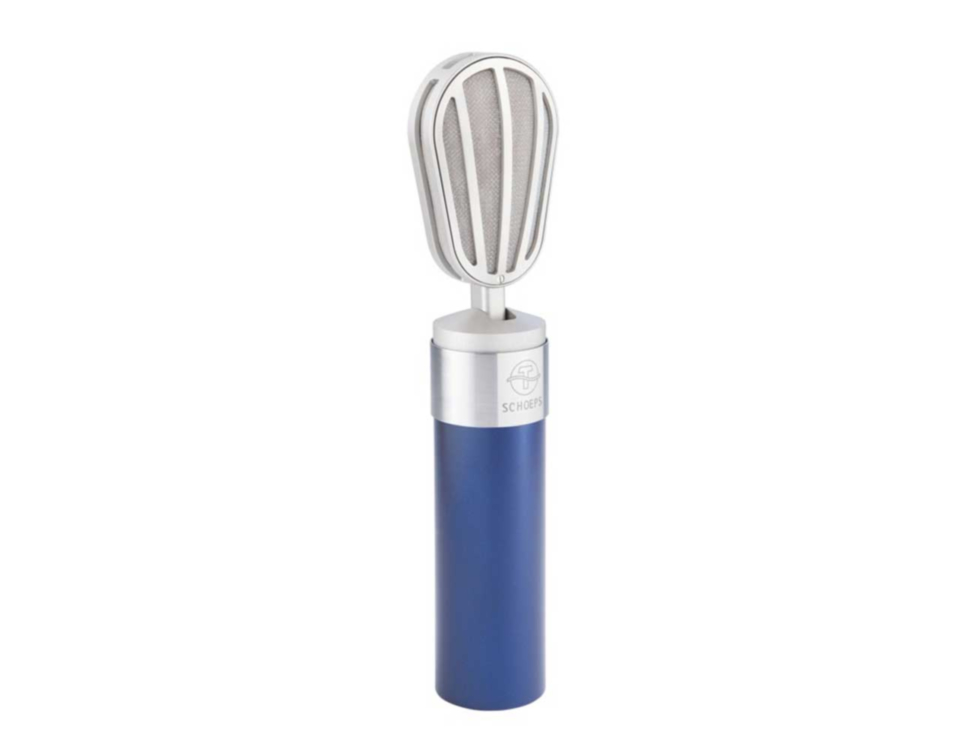

Schoeps V4 U b cardioid studio vocal microphone, blue, incl. premium case
€ 2,906.42 Our Price € 2,402.00 Our Price

The V4 U is the studio vocal microphone by Schoeps. It unites the outstanding technical characteristics typical of Schoeps with a timeless, classic design. The "look" of the V4 U is based on the Schoeps CM 51/3 from 1951. But the V4 U is a thoroughly modern studio microphone. Its capsule, circuitry and mechanical construction are the result of extensive new development.

MICROPHONE FEATURES:

  • studio vocal microphone
  • small-diaphragm capsule architecture, with bevelled collar for controlling the polar response
  • warm, clear sonic character with smoothly rolled-off diffuse-field response
  • capsule head with adjustable tilt angle
  • optimal on-axis frequency response featuring a mild high-frequency lift
  • very smooth polar response, carefully-controlled narrowing of the pattern at high frequencies
  • diffuse-field response parallel to the 0° response, with a gentle roll-off at high frequencies
  • electronics offer a very high maximum sound pressure level

CAPSULE FEATURES:

  • a 33-mm beveled collar causes the capsule's directivity to increase steadily and smoothly at high frequencies, as in a largediaphragm microphone
  • the superior acoustic qualities of a small-diaphragm capsule like the extraordinarily smooth frequency and polar response are maintained
  • the capsule is elastically suspended internally to reduce solid-borne sound such as handling noise

ELECTRONICS FEATURES:

  • bridge-type balanced output circuit
  • maximum sound pressure level of 144dB SPL, corresponding to an output level of 4.8V
  • output stage transformerless and free of coupling capacitors
  • the resulting output impedance is low and constant with frequency, while the symmetry is very high
  • symmetrical, balanced output, the entire audio circuit is symmetrical from the output of the FET onward
  • high immunity to interference, with gapless shielding and a modern RFI filter at the output, very good electromagnetic compatibility

  • directional pattern: cardioid
  • frequency range: 50Hz to 22kHz
  • sensitivity: 16mV/Pa
  • equivalent noise level (A-weighted): 15dB-A
  • equivalent noise level (CCIR): 25dB
  • signal-to-noise ratio (A-weighted): 79dB-A
  • maximum sound pressure level at 0.5% THD: 144dB-SPL
  • maximum output voltage: 4.8V
  • low-cut frequency: 40Hz
  • powering voltage: 48V
  • current consumption: 3.3mA
  • length: 194 mm
  • weight: 302 g
  • diameter (cylinder): 34 mm
  • width of the capsule head: 45 mm
  • head swivel degree span: +/-20°
