SENNHEISER MZF 8000 II
article code
sen.mzf8000ii

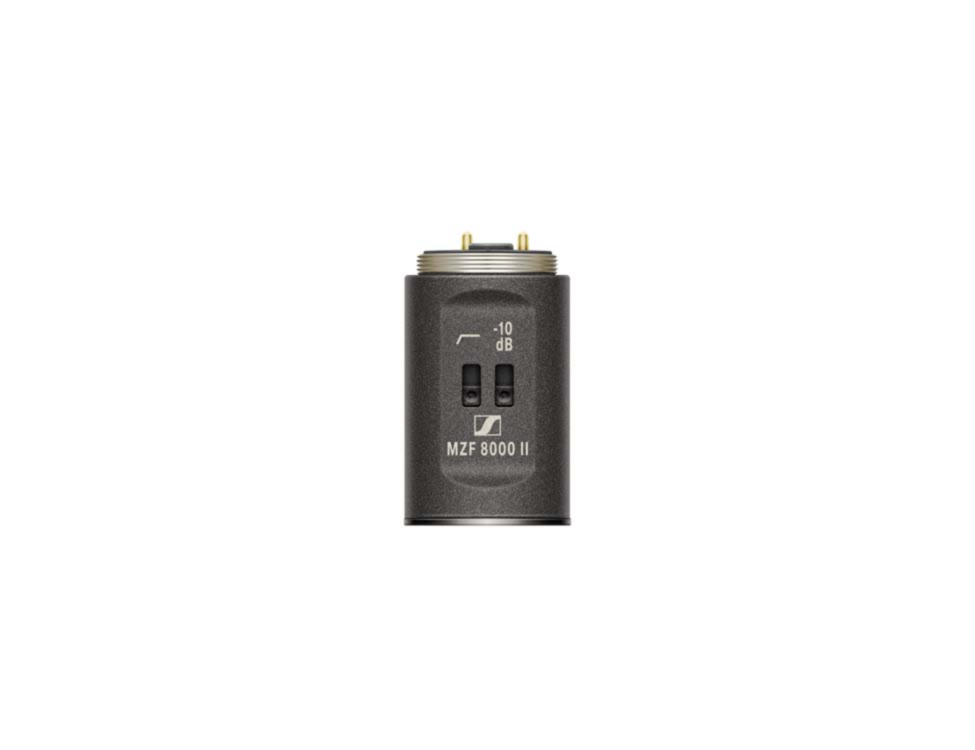

Sennheiser MZF8000 II in-line filter module for MKH8000 series, with switchable roll-off filter and 10dB pad
€ 329.75 List Price
€ 359.71 Our Price € 297.28 Our Price
The MZF 8000 II is a filter module for the MKH 8000 professional RF condenser microphone series. Especially in the broadcast and film industries, it effectively blocks interference caused by infrasound, such as low-frequency noises caused by wind and handling.
- switchable low-cut filter (-3 dB @ 70 Hz, 18 dB/oct)
- fixed low-cut filter (-3 dB @ 16 Hz, 18 dB/oct)
- suppresses infrasound especially well
- extremely low inherent noise, complex acoustic details are preserved
- high-quality -10 dB pad protects against overdriving
- fully floating balanced output allows for non-critical connection technology with minimal distortion
- extremely compact design
- module can be used with remote accessory
- low-cut filter (fixed): -3 dB @ 16 Hz, 18 dB/oct
- low-cut (switchable): -3 dB @ 70 Hz, 18 dB/oct
- attenuation (switchable): -10 dB
- additional equivalent noise level @ 0 dB: 1 dB(A), @ -10 dB: 4 dB(A)
- max. input voltage @ 0 dB: 14 dBV, @ -10 dB: 9 dBV
- max. output voltage @ 0 dB: 14 dBV, @ -10 dB: -1 dBV
- power requirements: P48 (44-52 V, 6.800 Ohm)
- output impedance: 50 Ohm, floating balanced (transformerless)
- min. terminating impedance: 2 kOhm
- input and output connector compatible to modular MKH 8000 accessories
- dimensions: 19 mm dia x 29 mm
- weight: 26 g
- temperature range: -10 °C to +60 °C
| Brand | Sennheiser |
|---|
