SENNHEISER L6000
L 6000 expands the Digital 6000 and Digital 9000 series with a practical and intelligent charging station. Up to four modules can be fitted as needed with two charging ports each for bodypack or handheld transmitter batteries. Three-color LEDs simplify the quick overview of the charging status. Can also be controlled via WSM software.

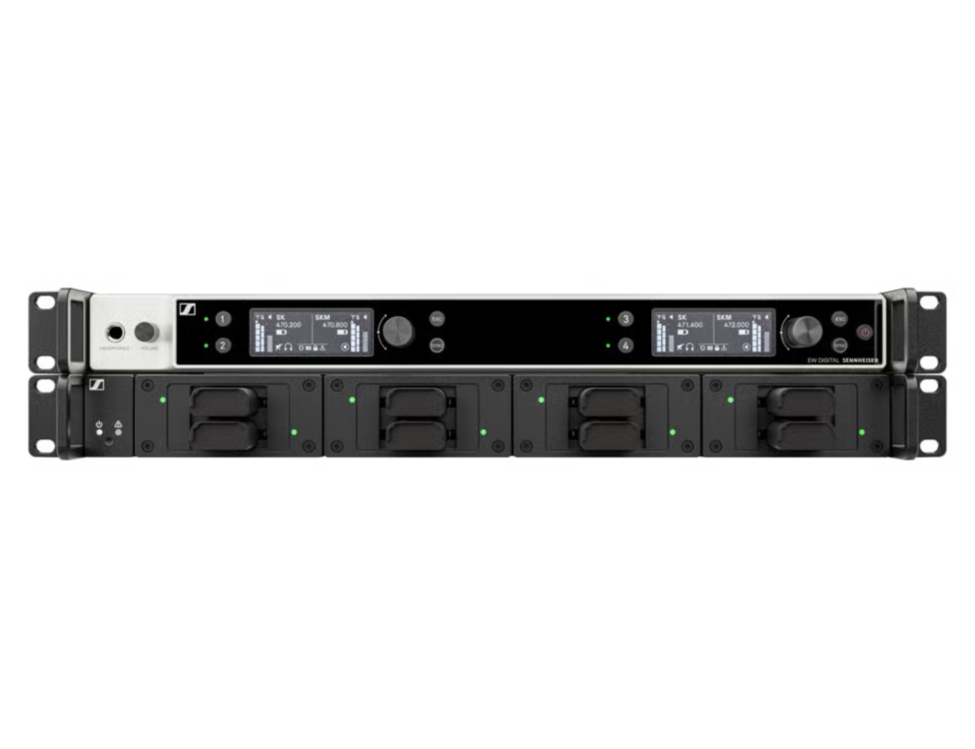

Practical, central, intelligent: The 19 inch 1 RU L 6000 charging station delivers power centrally and directly in the rack. Up to four freely selectable charging modules can accommodate two bodypack or handheld battery packs each (a total of 8 charging ports for battery packs BA 60, BA 61 or BA 62).
Three-color LEDs give a quick overview of the charging status. The intelligent control system prevents heat buildup and also offers a mode that optimally charges the batteries for extended storage periods.
The charging station L 6000 has a modular construction and is futureproof: Charging stations for future battery pack types can simply be retrofitted. Extensive details regarding temperature, remaining charging time, run times, charging cycles and battery quality can be retrieved via the Wireless Systems Manager (WSM).
FEATURES:
- practical charging station for 19 inch racks
- modular design, charging modules can be fitted as needed
- status display with multicolored LED
- detailed information/conditions can be monitored via the Wireless Systems Manager
IN THE BOX:
- 1x L 6000 charger
- 1x mains cable (EU, UK and US plug)
- 4x dummy covers incl. screws
- quick guide
- booklet with safety instructions
- booklet with specifications and manufacturer declarations
- 4x Rubber feet
- 2x stickers
- charging capacity: up to 8 battery packs (BA 60, BA 61, BA 62, BA 70) via 4 exchangeable charging modules (LM 6060, LM 6061, LM 6062, LM 6070)
- charging time BA 60 (at 20 °C): 80 %: approx. 1:15 h 100 %: approx. 2:30 h
- charging time BA 61 (at 20 °C): 80 %: approx. 1:45 h 100 %: approx. 3:15 h
- charging time BA 62 (at 20 °C): 80 %: approx. 1:15 h 100 %: approx. 2:45 h
- charging time BA 70 (at 20 °C): 80 %: approx. 1:45 h 100 %: approx. 3:30 h
- charging temperature range: 0 to 50 °C
- charging status display: Multi-colored
- network: IEEE 802.3-2002 (10/100 Mbit/s), shielded RJ-45 connection
- power supply: 100 to 240 V AC, 50/60 Hz
- maximum power consumption: 85 W
- minimum power consumption: 1 W
- power plug: 3-pin, protection class I as per IEC/EN 60320-1
- dimensions (H x W x D) with mounting elements: 44 x 483 x 373 mm
- weight: 5.1 kg
- ambient temperature: -10 to 55 °C
- relative humidity: Max. 90 % at 40 °C
- dripping and splashing liquids: the product must not be exposed to dripping and splashing (IP2X)
