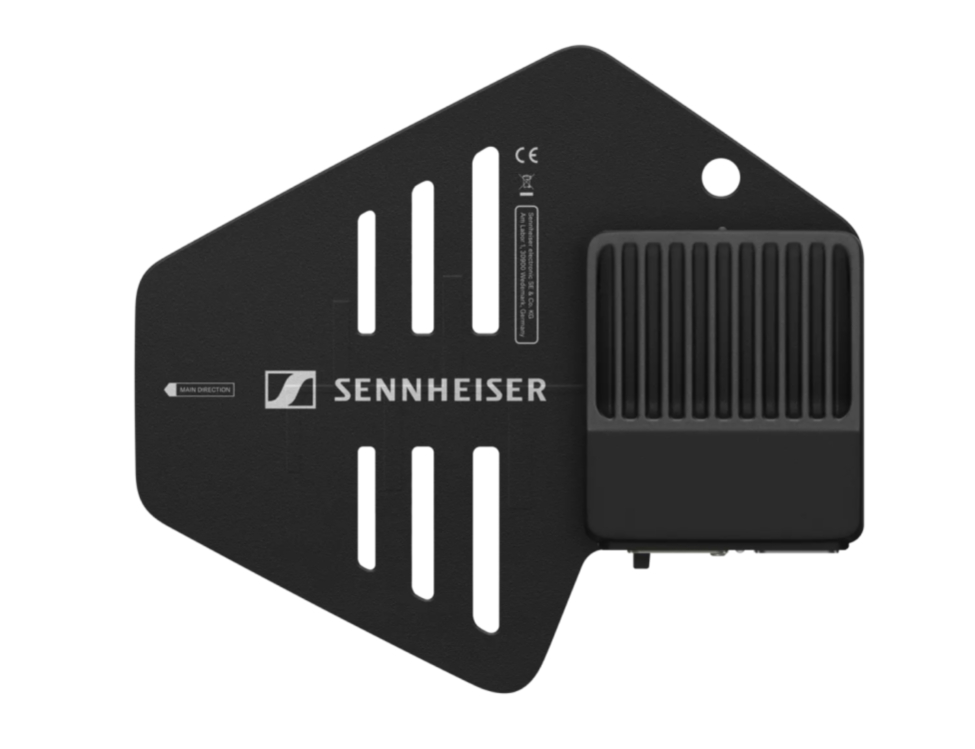

SENNHEISER SPECTERA DAD (1G4)
article code
sen.specdad1g4
Sennheiser SPECTERA DAD (1G4) bi-directional digital antenna with RJ45 connection, frequency range 1G4 (1350-1400 MHz and 1435-1525 MHz)
€ 1,599.00 Our Price € 1,321.49 Our Price
The transceiving Spectera Digital Antenna Directional (DAD) manages IEM signals, mic/line signals and data simultaneously. It provides continuous interference management and remote control, and is equipped with a ruggedized RJ45 connector, IP54 protection, and PoE.
FEATURES:
- transceiving antenna manages IEM signals, mic/line signals, and data simultaneously
- integrated RF components eliminate the need for additional dedicated RF gear such as combiners, splitters, or boosters
- ruggedized RJ45 connector for standard network cable CAT 5e or higher (point to point)
- continuous interference management and remote control
- IP54 protection
- optional use as dedicated fast and high-quality scanning device
- powered over ethernet (standard PoE)
IN THE BOX:
- SPECTERA DAD (1G4)
- quick guide
- safety guide
- manufacturer declaration sheet
Specifications:
- frequency range: 1350 1400 MHz/ 1435 1525 MHz
- RF power: 10 100 mW
- Apex angle (f x h): 62° x 93°
Connections:
- 1x RJ45
- 1x thread incl. 3/8" to 5/8" adapter
Physical Properties:
- dimensions: 231 x 205 x 39 mm
- weight: 534 g
- operating temperature: approx. -10 °C +60 °C
- relative humidity: 25 % 95 %
- power supply: PoE Class 2
- power consumption: < 6.5 W
- IP Class: IP54
| Brand | Sennheiser |
|---|
