SENNHEISER SPECTERA SEK (1G4)

article code
sen.specsek1g4

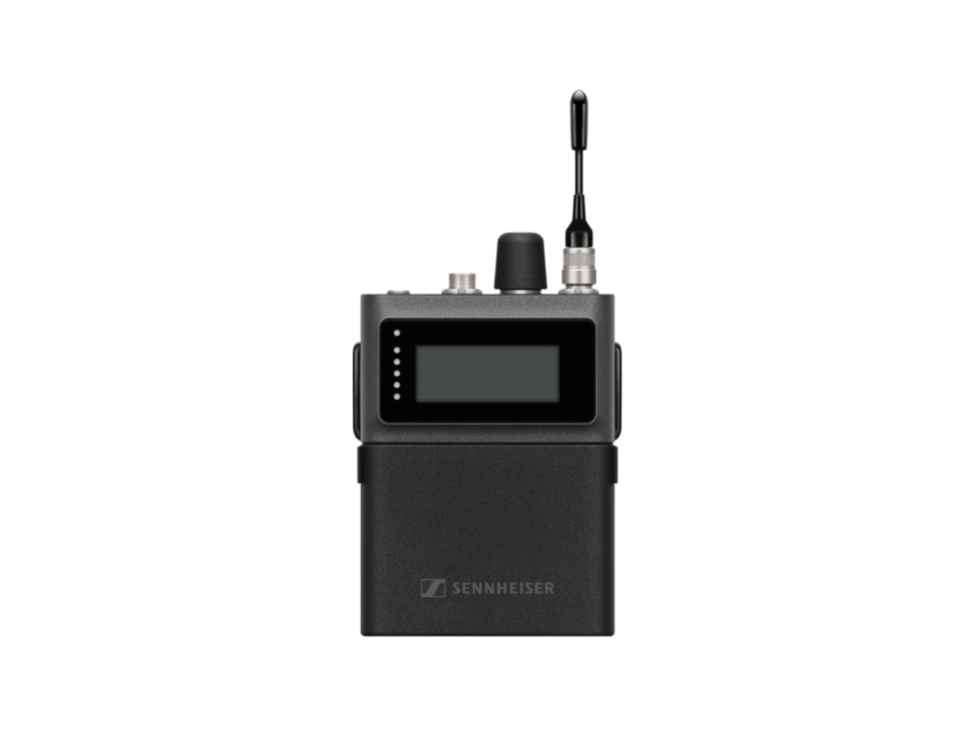

Sennheiser SPECTERA SEK (1G4) bi-directional bodypack for mic/line transmission and IEM reception, battery not included, frequency range 1G4 (1350-1400 MHz and 1435-1525 MHz)
€ 1,999.00 Our Price € 1,652.07 Our Price

Each bidirectional Spectera SEK bodypack manages both an IEM/IFB and a mic/line stream simultaneously. Plus, they allow for full remote control and monitoring, via identical RF connection, of IEM volume, audio level and settings, RF health, battery status, , and more via LinkDesk software and Spectera WebUI.

FEATURES:

  • bidirectional bodypack manages both digital IEM/IFB and mic/line signals simultaneously
  • bidirectional audio signals and control data in identicalRF carrier of all mobile devices
  • full remote control and monitoring of SEK bodypack: IEM volume, mic/line gain, RF health, battery status, and more
  • impedance-matching high-power headphone amplifier
  • continuous interference management
  • endless encoder with push button
  • 3-pin mic/line input and IEM/IFB 3.5 mm headphone connector
  • LED meter, status LED and persistent display for "always on" information name visible on screen even when batteries are removed
  • up to 7 hours of operating time depending on the selected Audio Link mode and settings with BA 70 rechargeable lithium-ion battery (sold separately)
  • encrypted RF connection between the Base Station and bodypack
  • secure transmission of confidential content using AES 256 encryption
  • versatile charging options also available: L 70 USB, LM 6070 Module for L 6000 full rack charging station and charging contacts for in-device charging with CHG 70N-C
  • compatible with a wide range of Sennheiser lavalier and headset microphones with 3-pin locking connector and in-ear monitors with 3.5 mm connector
  • rugged metal housing

IN THE BOX:

  • Spectera SEK 1G4
  • Spectera SEK Belt Clip
  • Spectera SEK Antenna 1G4
  • 3-pin Protective Cap MIC/LINE
  • pouch
  • quick guide
  • safety guide
  • manufacturer declaration sheet

Specifications:

  • RF Channels: 1 (6 or 8 MHz)
  • transmission scheme: Multicarrier, TDMA, TDD
  • frequency range: 1350 1400 MHz, 1435 1525 MHz
  • audio connections/mobile devices: up to 128 per RF channel
  • RF transmitting power: max. 50 mW
  • encryption: AES 256
  • audio frequency response: 20 Hz 20,000 Hz (±1 dB)
  • Hi-Pass Filter: off/ 30/ 60/ 80/ 100/ 120 Hz
  • mic gain: -6 to 42 dB, in 1 dB steps
  • mic level: max. 7 Vpp @ 1 kHz
  • line level: max. 9 Vpp @ 1 kHz
  • battery operating time: up to 7 h (unidirectional)/ 5 h (bidirectional)

Connections, Displays & Controls:

  • 1x 3.5 mm headphone output
  • 2x 400 mW RMS (16 O, @ 1 kHz)
  • 1x 3-Pin Connector (female) Mic/ Line In
  • 1x Antenna Connector
  • 1x Endless Encoder / Switch
  • 1x 5 Segment LED Meter
  • 1x Status LED
  • 1x Display
  • 1x Power Switch (Covered)

Physical Properties:

  • dimensions: 83.5 x 62 x 21 mm (without antenna)
  • weight: approx. 144 g/ 178 g (without/ with battery)
  • material: Metal
  • operating temperature: approx. -10 °C to +50 °C
  • relative humidity: 25% 95%
  • power supply: Li-ion battery
