SHURE ADX1-LEMO3

article code
shu.adx1l3

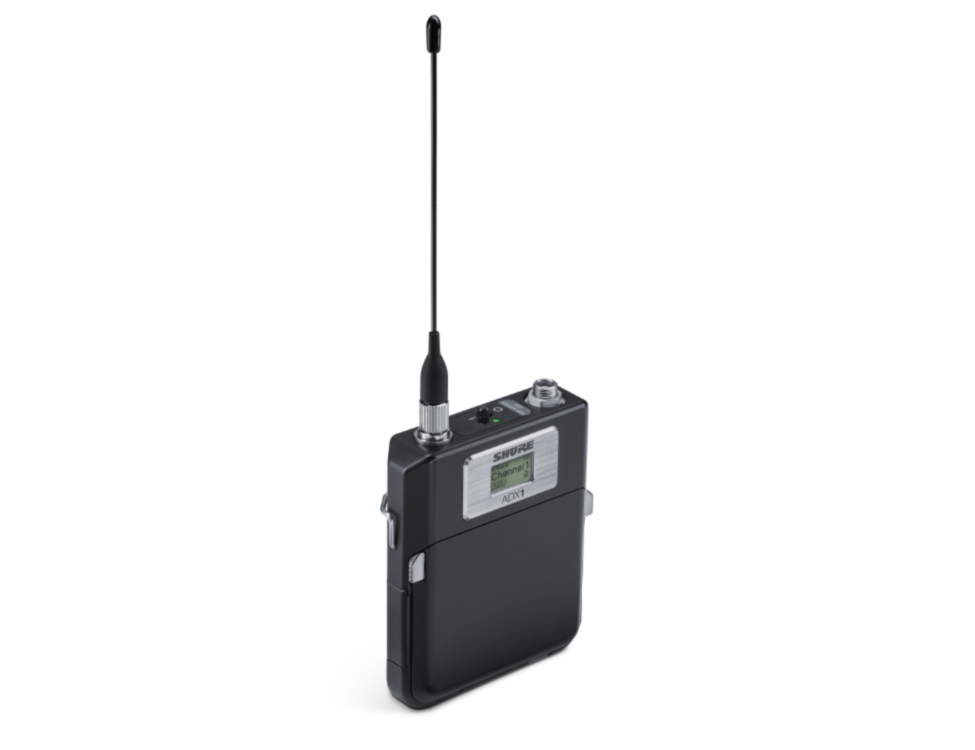

Shure ADX1-LEMO3 bodypack transmitter with ShowLink, Lemo 3p, incl. 2x SB910 rechargeable battery and belt clip

ADX1, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth. Includes two SB910 rechargeable batteries.

FEATURES:

  • removable antenna and fully concealed buttons and switch
  • connector: Lemo 3p
  • advanced control menu with powerful features
  • durable, moisture-resistant, lightweight metal case
  • up to 10 hours of runtime with SB910 rechargeable battery
  • diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • external contacts for docked charging
  • two transmission modes: Standard for optimal coverage and new High density for maximum system channel count and robust coverage
  • encryption-enabled, secure transmission

WHAT'S INCLUDED:

  • 2x SB910 rechargeable battery
  • 1x belt clip

GENERAL:

  • mic offset range: -12 to 21 dB (in 1 dB steps)
  • battery type: Shure SB910 Rechargeable Li-Ion
  • battery runtime @ 10 mW: Shure SB910 up to 10 hours
  • dimensions (H x W x D in mm): 91 x 68 x 19
  • weight: 142 g without battery
  • housing: aluminum
  • operating temperature range: -18°C to 45°C
  • storage temperature range: -29°C to 74°C

AUDIO INPUT:

  • connector: 4-Pin male mini connector (TA4M) or Lemo connector
  • configuration: unbalanced
  • impedance: 4-Pin male mini connector (TA4M) 910 kOhm and Lemo connector 8.2 kOhm
  • maximum input level (1 kHz at 1% THD): pad off 8.5 dBV (7.5 Vpp) and pad on 20.5 dBV (30 Vpp)
  • preamplifier equivalent input noise (EIN, system gain setting +20): -120 dBV, A-weighted, typical

RF OUTPUT:

  • antenna type: UHF 1/4 wave
  • connector type: SMA
  • impedance: 50 Ohm
  • occupied bandwidth: <200 kHz
  • channel-to-channel spacing: standard mode 350 kHz and high density mode 125 kHz
  • modulation type: Shure axient digital proprietary
  • power: 2 mW, 10 mW, 40 mW
  • specific absorption rate (SAR): < 0.20 W/kg

SHOWLINK:

  • network type: IEEE 802.15.4
  • antenna type: Zigbee dual conformal
  • frequency range: 2.40 to 2.4835 GHz (24 channels)
  • RF output power: 10 dBm (ERP)
