SONOSAX SX-AD8+
article code
snx.044300
Sonosax SX-AD8+ 8ch mic/line preamplifier with AES outputs, no cable included
€ 5,551.48 Our Price € 4,588.00 Our Price

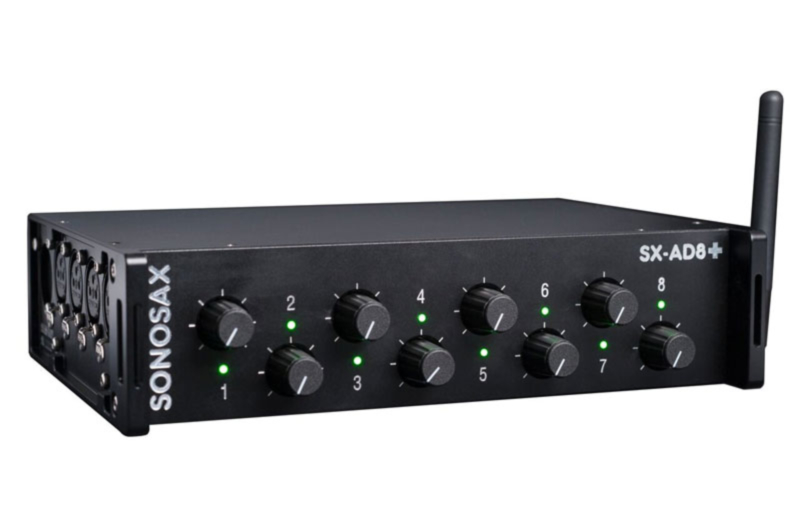

The SX-AD8+ is an 8 channel portable microphone preamplifier, made with the same preamplifier and A/D converters as on the SX-R4+. It offers outstanding sonic performances and an overall dynamic range of 135dB.
It's equipped with four AES digital outputs as standard, optional Dante or AVB interface boards are also available.
The SX-AD8+ can be used either as companion to the SX-R4+ or as stand alone to add very high quality mic-pre to any equipment providing AES inputs.
FEATURES:
- 8x mic/line inputs, electronically balanced on XLR3F, with phase reversal, 48V phantom and LF cut with level control on the front panel
- 4x AES3 transformer balanced outputs on multi-pin connector
- optional audio over IP on RJ45 connector, for AVB and Dante
- WiFi dynamic web interface
INPUTS / OUTPUTS:
- 8x mic/line inputs, electronically balanced on XLR3F, with phase reversal, 48V phantom and LF cut with level control on the front panel
- 4x AES3 transformer balanced outputs on MDR 26p multi-pin connector
- optional audio over IP on RJ45 connector, for AVB and Dante
PERFORMANCES:
- 135 dB (A-weighted) overall dynamic range
- 90 kHz overall frequency response @192 kHz
- 40 bits processing
- 24bits 48/96/192 kHz
USER INTERFACE:
- using front panel push-buttons
- via WiFi dynamic web interface
- or through the SX-R4+ user interface
POWERING:
- external DC 9-18V on Hirose 4p
- class 1 IEEE 802.3af PoE (with Dante option board)
MECHANICAL:
- machined aluminum housing
- overall dimensions: 200 x 50 x 144.5 mm
- weight: 820g
| Brand | Sonosax |
|---|
