SONOSAX SX-R4+ optional Dante I/O board
article code
snx.024352

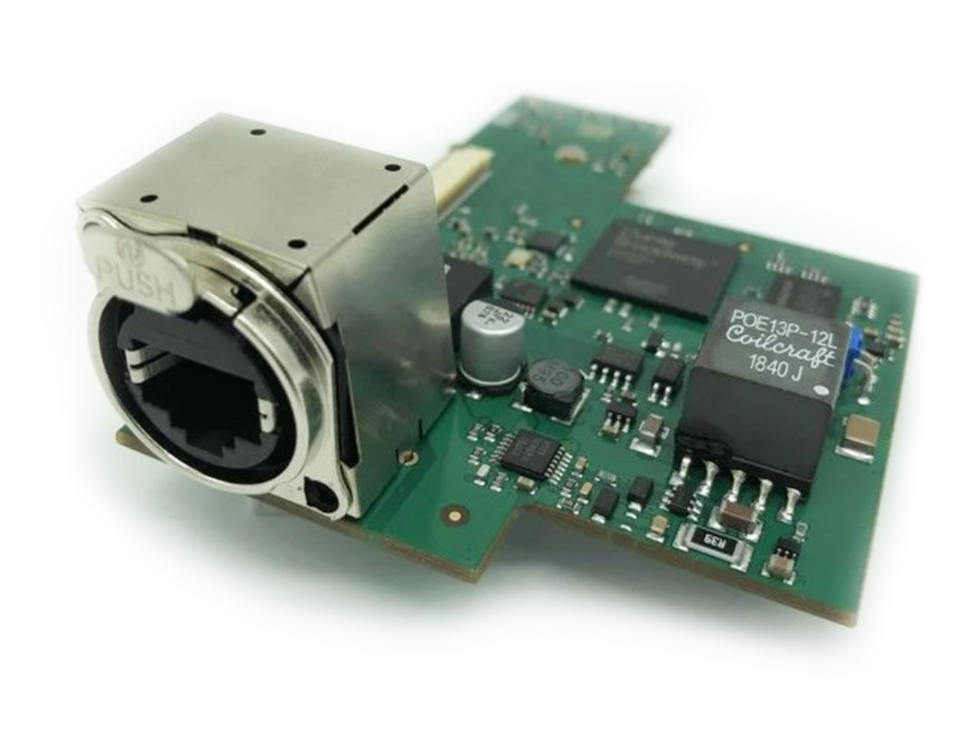

Sonosax optional Dante I/O board with PoE, for SX-R4+
€ 861.52 Our Price € 712.00 Our Price
The card allows the SX-R4+ to be connected to a DANTE audio network and makes the 8 analog input channels and 8 analog output available sources in the DANTE Controller. The card is PoE power supply compatible and the SX-R4+ can be fully powered via the Ethernet cable.
AUDIO:
- 8 channels 24-bit out
- 8 channels 24-bit in
- clocking: independent clock domain between Dante and SX-R4+ (sync with ASRC)
- Dante sample rates: 44.1, 48, 88.2, 96, 176.4, 192k (16, 24, 32-bit) with pull-up support
- AES67 capable
NETWORK:
- 100 / 1000 Mbps
- Class 1 IEEE 802.3af PoE
| Brand | Sonosax |
|---|
