SONY UWP-D27PRO wireless package
The UWP-D27 is a complete wireless audio package that's ideal for on-camera interviews, live presentations and other applications where you need to capture crisp, clear sound with minimum fuss. The ECM-77BMP omni-directional lavalier microphone connects to the light, compact UTX-B40 bodypack transmitter that's worn by an interviewee. Audio is transmitted wirelessly to the URX-P41D 2-channel portable receiver, with quick and easy wireless pairing between transmitter and receiver. The optional SMAD-P5 Multi Interface Shoe Adaptor simplifies audio recording with compatible Sony cameras and handheld camcorders.
The URX-P41D can select SCAN TYPE and can scan all available frequency bands when ALL BAND is selected. The IR port on the URX-P41D allows users to select NFC or IR in SYNC MODE from the Utility menu. This allows owners of previous transmitter models (UTX-B03/UTX-M03/UTX-P03) to sync receivers and transmitters with IR.
For use with the various input levels of different camcorders and DSLR cameras, the new system provides a variable output level control of ±12dB. Equipped with a new HIGH GAIN mode, the URX-P41D is especially useful when connecting to devices that require higher gain. Excellent signal quality is assured by two independent receiver sections that ensure stable, dropout-free reception. Uniquely quick and convenient, Sony's friendly NFC SYNC feature allows secure channel pairing between the UTX-B40 wireless transmitter and URX-P41D receiver.

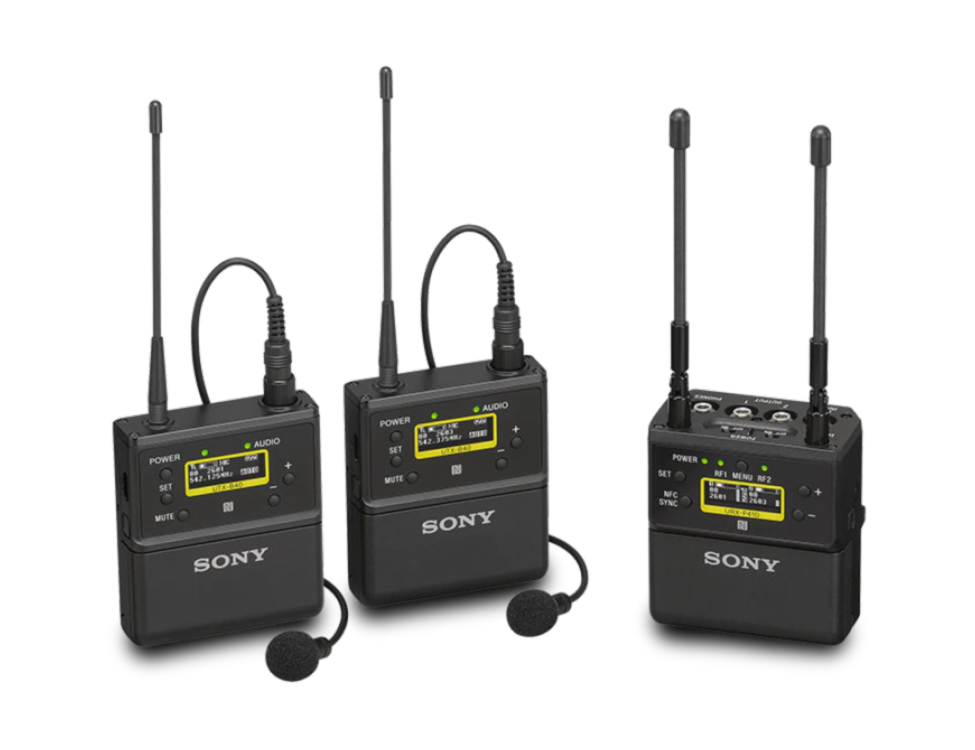

KIT INCLUDES:
- 2x UTX-B40 bodypack transmitter
- 1x URX-P41D portable receiver
- 2x ECM-77BMP omni-directional lavalier microphone with windscreen and clip
- cold-shoe mount attachment plate, 3x belt clips, 2x output cables to XLR3M and stereo output cable to mini-jack
URX-P41D DUAL CHANNEL PORTABLE RECEIVER:
- oscillator type: crystal-controlled PLL synthesizer
- reception type: space diversity
- antenna type: 1/4 lambda wavelength wire antenna (angle-adjustable)
- carrier frequencies: 21CE 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29)
- frequency response: 23 Hz to 18 kHz
- signal-to-noise ratio: 60 dB (1 kHz sine wave, 5 kHz modulation)
- distortion (T.H.D): 0.9% or less (1 kHz sine wave, 5 kHz modulation)
- audio delay: approx. 0.35 ms (analog output) and approx. 0.24 ms (digital output)
- audio output connector: 3.5 mm diameter 3-pole locking mini jack, external connection
- audio output level: -50 dBV (3.5 mm diameter 3-pole locking mini jack, analog output, 0 dB audio output level), -20 dBFS (external connection, digital output, 0 dB audio output level) and -50 dBFS (external connection, analog output, 0 dB audio output level)
- analog audio output adjustment range: -12dB up to +12dB (3dB step)
- headphone output connector: 3.5 mm diameter mini jack
- headphone output level: max. 10mW (16 Ohm)
- tone signal frequency: in UWP-D compander mode 32.382 kHz, in UWP compander mode 32 kHz and in WL800 compander mode 32.768 kHz
- display: OLED
- power requirements: DC 3.0 V (two LR6/AA size alkaline batteries) and DC 5.0 V (supplied from USB Type-C connector)
- battery life: approx. 4.5 hours with two AA-size alkaline (LR6) batteries at 25 °C, DISPLAY MODE set to AUTO OFF.)
- operating temperature: 0 °C to 50 °C
- storage/transport temperature: -20 °C to +55 °C
- dimensions (W x H x D in mm): 63 x 70 x 35 (excluding antenna)
- mass: approx. 159 g (excluding batteries)
UTX-B40 BODYPACK TRANSMITTER:
- oscillator type: crystal-controlled PLL synthesizer
- antenna type: 1/4 wave length wire antenna
- carrier frequencies: 21CE 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29)
- RF Output Power: 30 mW/5 mW selectable
- capsule type: electret condenser
- directivity: omni-directional
- input connector: 3.5 mm diameter 3-pole locking mini jack
- reference audio input level: -60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation) and +4 dBu (LINE input)
- audio attenuator adjustment range: 0 dB to 27 dB (3 dB steps)
- frequency response: 23 Hz to 18 kHz
- signal-to-noise ratio: 60 dB (-60 dBV, 1 kHz input), 102 dB (GAIN MODE set to AUTO GAIN, max.) and 96 dB (GAIN MODE set to NORMAL, max.)
- distortion: 0.9% or less (-60 dBV, 1 kHz input)
- audio delay: approx. 0.35 ms
- tone signal frequency: in UWP-D compander mode 32.382 kHz, in UWP compander mode 32 kHz and in WL800 compander mode 32.768 kHz
- display: OLED
- power requirements: DC 3.0 V (two LR6/AA size alkaline batteries) and DC 5.0 V (supplied from USB Type-C connector)
- battery life: approx. 8 hours with output power of 30 mW
- operating temperature: 0 °C to 50 °C
- storage/transport temperature: -20 °C to +55 °C
- dimensions (W x H x D in mm): 63 x 73 x 19 (excluding antenna)
- mass: approx. 83 g (excluding batteries)
| Brand | Sony |
|---|
