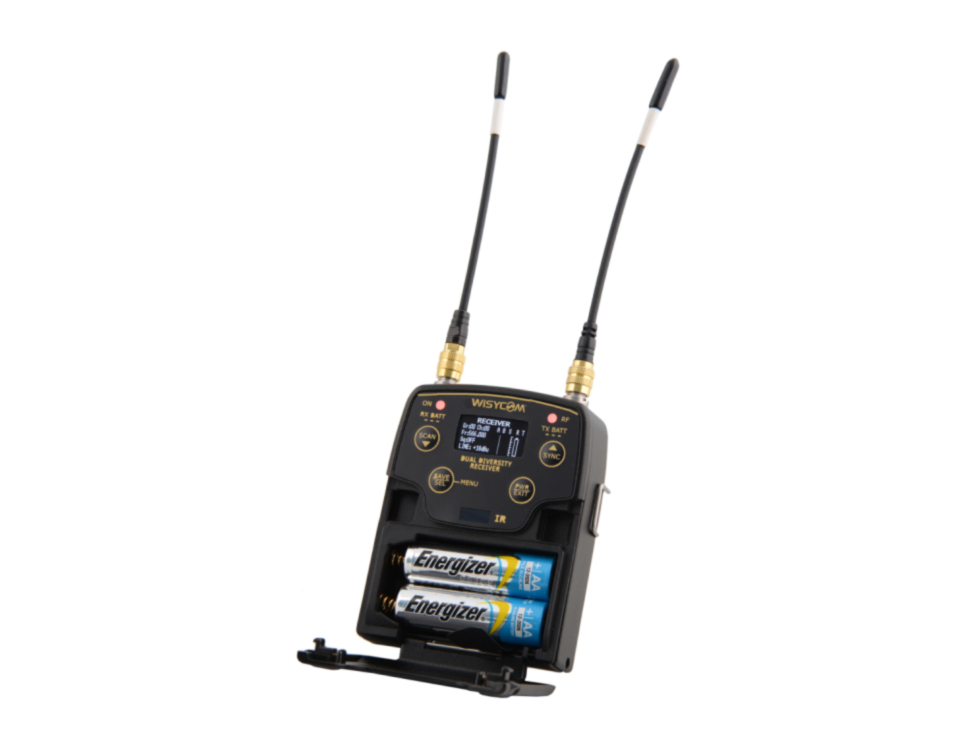

WISYCOM MPR52-ENG-B1
MPR52-ENG is a compact two channels receiver designed for professional ENG applications.
The MPR52 has two built-in diversity receivers with both analogue and digital outputs. With up to 790 MHz bandwidth in the 470/1260 MHz range, the MPR52 features next generation multiband front-end filtering.
The software selectable wideband and narrowband DSP-FM operation gives users options based on their project needs.
Country specific Surface Acoustic Wave (SAW) filters are also available (USA: 935-960 MHz and Japan: 1240-1260 MHz).
The receiver also offers convenient function buttons, including a dedicated frequency scan option.
Battery management is flexible as it features standard battery packs that can be charged with the dedicated charger or through the micro-usb-B connector.
FEATURES:
- two channels diversity receiver
- DSP analogue & digital audio output (AES3)
- up to 790 MHz bandwidth in 470/1260 MHz range
- extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup
- high contrast OLED display
- automatic scan & transmitter programming through infrared
- DSP based for extreme flexibility and multicompanding operations
- operation and charger (lithium) thru USB connector
- monitor & control through USB and Wisycom Manager 2.0 (computer SW): this transform MPR52 in a quick and low noise portable spectrum scanner
- next gen multiband front-end filtering: high Q moving filter in 470-960 MHz / high Q moving filter in 960-1160 MHz (DME)
- country specific saw filters: USA 940-960 MHz & Japan 1240-1260 MHz or 806-810 MHz
Wideband and Narrowband DSP-FM operation (SW selectable):
- narrowband allows more 50% band efficiency
- narrowband allows about 3dB extra sensitivity and noise immunity
Miniature design with integrated battery pack:
- rechargeable lithium pack
- 2 x AA batteries
- frequency range: 470 ÷ 800 MHz, 960 ÷ 1160 MHz (DME) and 940 ÷ 960 MHz for B1 option
- switchable channels: 2400 managed in 40 groups ofr 60 frequencies completely user customizable
- switching-window: Up 790 MHz
- frequencies: microprocessor controlled frequency synthesizer circuit, with 5 kHz minimum step: frequencies is easily PC reprogrammed with USBmini interface or optional UPKmini programmer
- frequency error: < ± 2.5 ppm, in the rated temperature range
- modulation: FM mono, wideband or narrowband IFB (SW selectable)
- peak deiation: ±54 kHz (wideband), ± 40 kHz (narrowband)
- antenna input impedance: 50 Ohm sma type (SWR < 1:2, typ. 1:1.4)
- sensitivity: 2 µV ( 6 dBµV), for SND/N > 58 dB / 5 µV (14 dBµV), for SND/N > 98 dB
- amplitude response: < 0.5 dB (for RF input signal:6 dBµV ÷ 100 dBµV)
- co-channel rejection: > 80 dB typical (for channel spacing = 400 kHz)
- spurious emissions: < 2 nW (typical = 0.1 pW)
- noise Reduction system: ENR / ENR-1.2 (Wisycom Extended-NR) , noise optimized, ENC / ENC-1.2 (Wisycom Extended-NC), voice optimized & with reduced pre-emphasis
- AF bandwidth: 30 Hz ÷ 20 kHz (wideband), 30 Hz ÷ 15 kHz (narrowband)
- frequency response: ± 1 dB in the 30 Hz ÷ 20 kHz range (wideband), ± 1 dB in the 30 Hz ÷ 15 kHz (narrowband)
- distortion: 0.3 % typical
- SND/D ratio (Analogue): 100 dB typical*
- SND/D ratio (Digital): > 125 dB typical
- audio output: Electronically balanced on 5 pin mini-XLR Female connector, analogue or digital (SW selectable), impedance = 200 ohm
- audio output level: mAX +18 dBu (peak deviation), adjustable in one dB step in a range of 54 dB
- digital output: AES3 @ 48 kHz
- monitor output: stereo plug 3.5mm(TRS) Locking (M6 x 0.5 thread)
- monitor output level: 2 X 100mW @ 32 Ohm
- managing interface: mini USB
- power LEDs: 3 colors dedicate LED
- display: OLED 128x64 (white)
- front buttons: simple operation with 4 buttons to quickly monitor and setup the receiver. One touch function for a frequency scan and sync function.
- power: 2 x IEC-LR6 1.5V size-AA alkaline or NiMh rechargeable
- temperature range: -10 ÷ +50 °C
- dimensions(H x W x D in mm): 91 x 71.5 x 27
- weight: 100g
