WISYCOM MTP60-EU_BT1

article code
w.mtp60eubt1

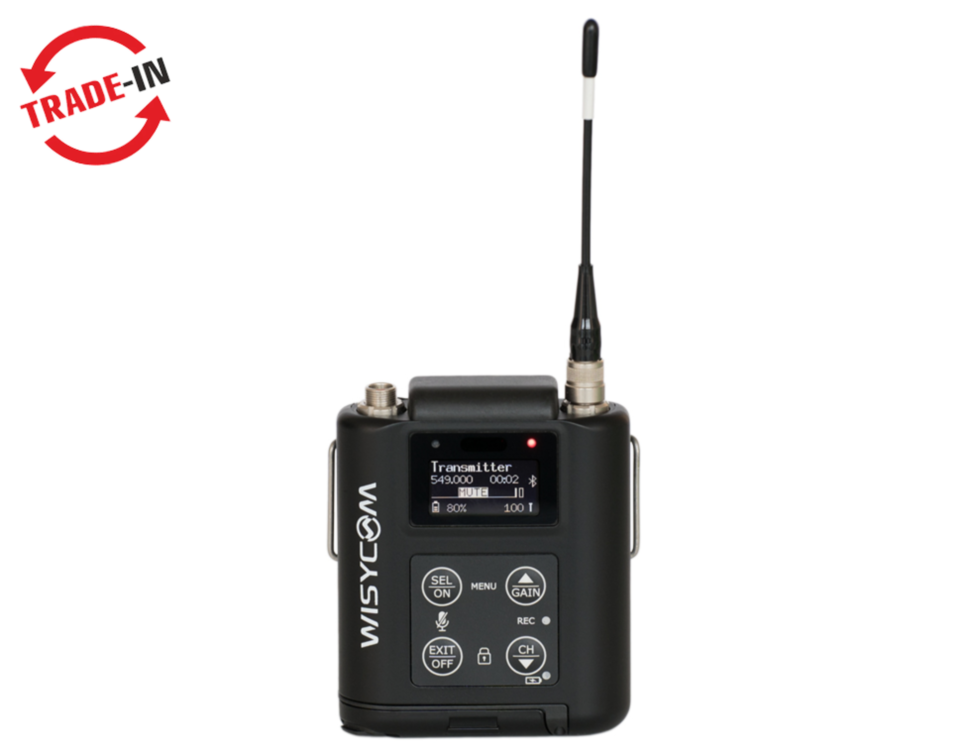

Wisycom MTP60-EU pocket transmitter with audio recording and Bluetooth control, 2x AA, 470-832 MHz
€ 2,150.00 List Price
€ 2,081.20 Our Price € 1,720.00 Our Price

MTP60 is a pocket transmitter specially designed for professional wireless microphone applications.

FEATURES:

  • monitor & control with Bluetooth via Wisycom Manager software or mobile device apps to adjust parameters in real time
  • dedicated hardware allows accurate real time position monitoring with advanced user interface
  • advanced linear technology (L20mW) eliminates intermodulation distortion for more robust signal
  • embedded recorder to record directly on the MTP60 memory card and integrated Linear Time Code decoding
  • enhanced robustness against self-interferences and antenna performances through a proprietary "intermodulation cancellation" circuit
  • an integrated haptic engine that gives tactile feedback with different vibration patterns
  • FPGA based signal processing allows easy switching between wide and narrow band operation
  • miniature design with flexible PCB (no connectors) for extended reliability
  • new ENS compander for a totally clear sound
  • powering with 2 x AA battery (Alkaline, NiMh, Lithium) or MPRLBP rechargeable Lithium battery (5.55 Wh)
  • bluetooth interface and mobile app allows full control from mobile or tablet
  • integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers
  • bluetooth 5 Long Range (Class 1, 100mW) with the MRK16 as a bridge allows remote control the MTP60 over hundreds of meters
  • front panel buttons to quickly enter menu thanks to its multiple shortcut combinations
  • max input level 26dBu (15.5 V clipping) to connect directly to mixers and instruments
  • 48V phantom power to use wired mic thru the PHA60 accessory

  • frequency range: 470 to 832 MHz
  • switchable channels: 2400 managed in 40 groups of 60 frequencies completely user customizable
  • switching-window: up to 362 MHz, depending on band
  • frequencies: Quartz PLL frequency synthesizer circuit (5 kHz step)
  • frequency error: ±2.5 ppm, in the rated temperature range
  • RF Power: switchable typ. 10mW / L10mW / 20mW/ L20mW / 50mW
  • antenna connector: LEMO-F 1 pin
  • modulation : wideband/narrowband FM, with digital audio conditioning (FPGA)
  • nominal deviation: ±40 kHz Wideband / ±25 kHz Narrowband
  • peak deviation: ±56 kHz Wideband / ±35 kHz Narrowband
  • spurious emissions: < 2 nW
  • telemetry feature: TX transmits also a digitally modulated sub-carrier, suitable for: tone-squelch operating, remote battery monitoring, optional PTT (push to talk) operation
  • noise Reduction system: ENS Wisycom Extended-Sound Optimized
  • AF bandwidth in NarrowBand mode (NB): 45 Hz ÷ 17 KHz (3dB)
  • AF bandwidth in WideBand mode (WB): 45 Hz ÷ 20 KHz (3dB)
  • distortion: < 0.3 % (0.15 % typ.)
  • SND/D ratio (Analogue): typ. 115 dB (A)rms with 40 kHz deviation, typ. 121 dB (A)rms with 56 kHz deviation Wideband
  • SND/D ratio (Analogue): typ. 115 dB (A)rms with 25 kHz deviation, typ. 121 dB (A)rms with 35 kHz deviation Narrowband
  • audio input connector: LEMO 3pin
  • audio input level: from -36 dBu (12mV RMS) to 26 dBu (15.5 V RMS) adjustable in 1 dB steps
  • max input level: +26 dBu (15.5 V) at clipping, +20 dBu (7.75 V) at nominal level
  • storage media: micro SD memory card (.wav files BWF)
  • time code: Linear time code decoding
  • bit rate: 16 bit / 24 bit / 32 bit
  • sampling rate: 48 kHz
  • managing interface: Bluetooth 5 long range, USB-C, IrDA
  • LED: 2 RGB LEDs (red, green and blue) for audio, RF and battery status, 1 LED for recording, 1 LED for battery charger
  • battery lifetime indication: percentage or minute/second
  • PTT function: pin 3 of the AF connector can be setup to an external push button
  • display: high contrast OLED white display (128 x 64 pixels)
  • power supply: 2 x AA battery (Alkaline, NiMh or Lithium), MPRLBP lithium (5.55 Wh)
  • battery life: approx. 10 hours @ 10mW with Alkaline batteries
  • temperature range: -10 to +55 °C
  • dimensions(W x H x D in mm): 75,7 x 61,4 x 19,4 without clip
  • weight: 140 g. without batteries (183 g. with lithium batt.)
