WISYCOM MTP61-EUX_XL
article code
w.mtp61euxxl

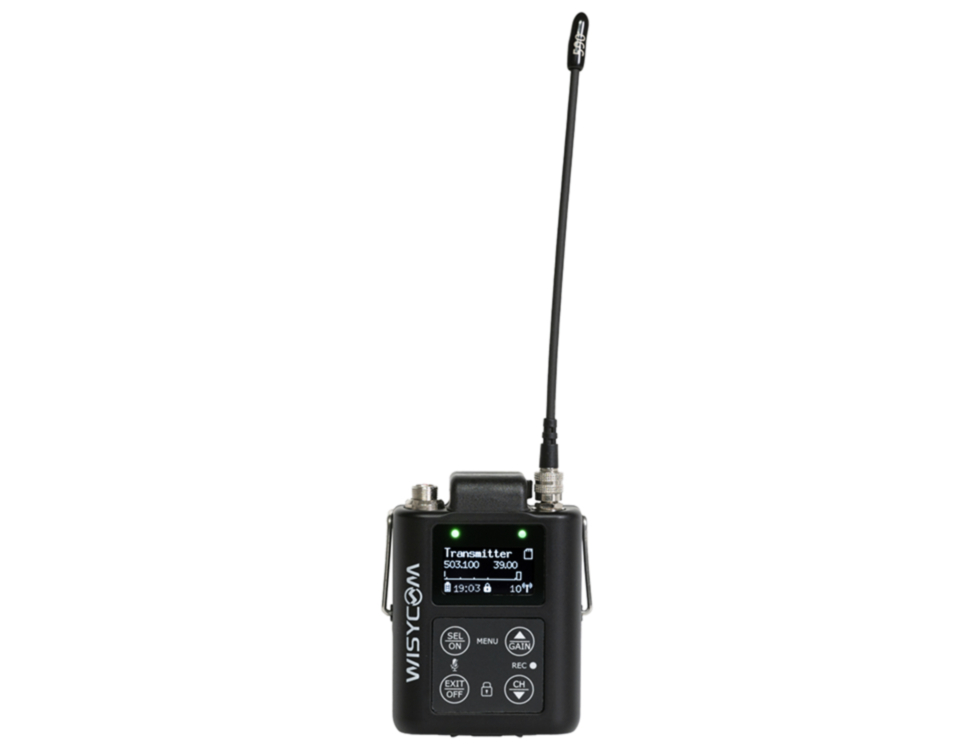

Wisycom MTP61-EUX_XL pocket transmitter with audio recording and Bluetooth control, 100mW, LBP61-XL rechargeable Li-Ion battery, 470-832 MHz
€ 2,400.00 List Price
€ 2,323.20 Our Price € 1,920.00 Our Price
Ideal for location sound, reality, theater, and any application where extended battery life and compact size are critical.
With only 7 millimeters of additional depth compared to the standard MTP61, the MTP61 XL offers double the battery life while maintaining all the same exceptional features.
The transmitter comes with the new LBP61XL battery and is rechargeable using the new LBC61-XL charger.
FEATURES:
- the multi-band transmitter currently has the widest tuning range of any wireless transmitter on the market (470 to 1260 MHz)
- monitor & control with Bluetooth via Wisycom BT App to adjust parameters in real time
- the Bluetooth interface and mobile app allows full control from mobile or tablet
- advanced linear technology eliminates intermodulation distortion for more robust signal, extended range, and the ability to operate multiple transmitters in close proximity to each other without needing an intermod frequency plan
- embedded recorder to record directly on the internal 64 GB micro SD card and integrated Linear Time Code decoding
- DSP based signal processing allows easy switching between wide and narrow band operation
- ENS compander for a totally clear sound
- over 19 hours of continuous operation at 10mW RF level, powering with Lithium-ion battery LBP61XL
- integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers
- front panel buttons to quickly enter menu thanks to its multiple shortcut combinations
- dedicated hardware allows accurate real time position monitoring with advanced user interface
- frequency range: from 470-832 MHz, depends on the country (see configurations)
- switchable channels: 2400 managed in 40 groups ofr 60 frequencies completely user programmable
- switching-window: up to 362 MHz, depending on band (see configurations)
- frequencies: Quartz PLL frequency synthesizer circuit (5 kHz step)
- frequency error: ±2.5 ppm, in the rated temperature range
- RF power: 10mW/ L10 W/ 20 mW/ L20 mW/ 50 mW/ 100 mW on specific configurations
- antenna connector: SSMA
- modulation: wideband and Narrow-band with DSP based digital signal processing
- nominal deviation: ±40 kHz Wideband / ±25 kHz Narrowband
- peak deviation: ±56 kHz Wideband / ±35 kHz Narrowband
- spurious emissions: < 2 nW
- telemetry feature: TX transmits also a digitally modulated sub-carrier, suitable for: tone-squelch operating / remote battery monitoring, compander and modulation control / optional PTT (push to talk) operation
- noise Reduction system: ENS Wisycom ultra-high permorfmance compander
- AF bandwidth: Audio frequency response (dBa) / in NarrowBand mode (NB): 45 Hz ÷ 17 KHz (3dB) / in WideBand mode (WB): 45 Hz ÷ 20 KHz (3dB)
- distortion: < 0.3 % (0.15 % typ.)
- SND/D ratio (analogue): typ. 115 dB (A)rms with 40 kHz deviation, typ. 121 dB (A)rms with 56 kHz deviation Wideband / typ. 115 dB (A)rms with 25 kHz deviation, typ. 121 dB (A)rms with 35 kHz deviation Narrowband
- audio input connector: LEMO 3pin / DPA MicroLockr connector (on request)
- audio input level: from -40 dBu (12mV RMS) to 6 dBu (1,55Vrms) adjustable in 1 dB steps / input dynamic extension with an integrated limiter
- max input level: +6 dBu (1,55Vrms) at clipping
- storage media: internal 64 GB micro SD memory card (industrial grade heavy duty)
- time code: Linear Timecode decoding
- bit rate: 24 bit / 32 bit
- sampling rate: 48 kHz
- managing interface: Bluetooth 5.2 low energy long range, proprietary waterproof magnetic connector 5 pin (USB HS + power + LTC)
- LED: 3 RGB LEDs (red, green and blue) for audio, RF, battery status and battery charger
- battery level indication: percentage or minute/second
- PTT function: Pin 3 of AF connector can be controlled via an externall PTT button
- display: high contrast OLED white display (128 x 64 pixels)
- power supply: Cameron Sino Lithium-ion battery Model CS-CM053SL Part No. LBP61XL (3.7V, 2100 mAh, 7.7Wh)
- battery life: max power 100 mW
- temperature range: -10 ÷ +55 °C
- dimensions: 66,8 mm x 47 mm x 24 mm (HxWxD) without clip
- weight: approx. 66 g. without battery, 109 g. with battery
| Brand | Wisycom |
|---|
