ZAXCOM summer sale bundle 5

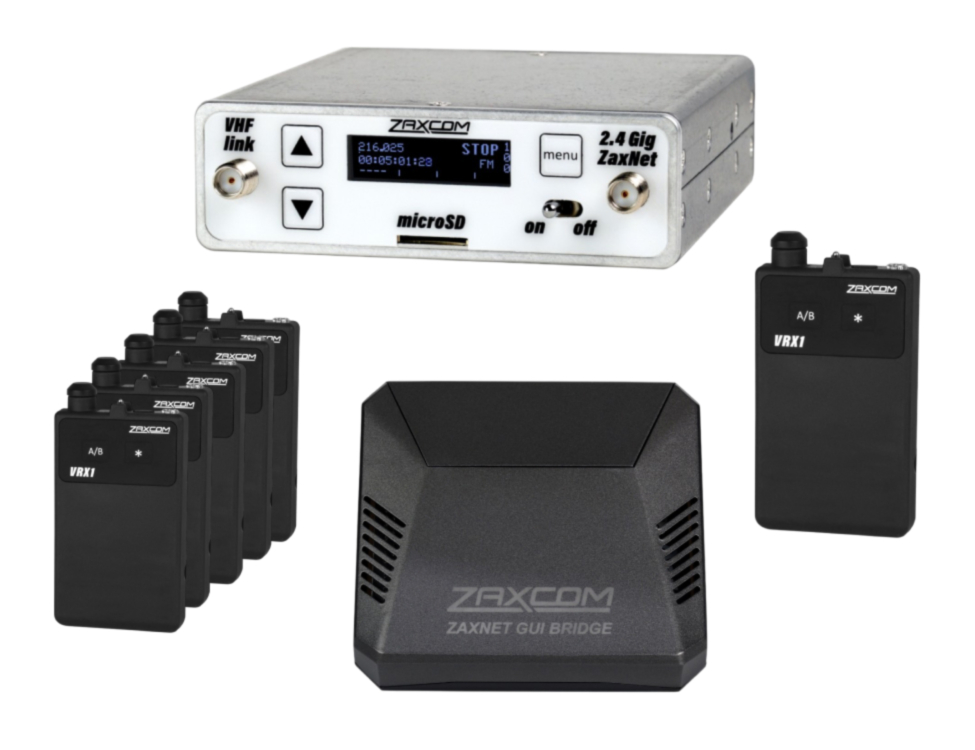

Zaxcom Bundle incl. 1x VTX1 ZaxNet and VHF transmitter + 5x VRX1 IFB audio receivers + 1x free ZGB Zaxnet GUI Bridge or 1x free VRX1 IFB audio receiver
VTX1
VTX1 is the next evolution in IFB transmission combining two types of frequency bands and enhanced features including encrypted audio, timecode, internal recording, and remote capabilities all in one device, making it the most versatile IFB system for any project.
VTX1 is engineered to transmit both VHF and 2.4 GHz frequency bands for ultimate performance.
The VHF turning range is 192-217 MHz with a 25 kHz RF frequency step. VHF offers two user-selectable operating modes: FM analog and a fully encrypted 100% digital modulation mode. No matter which mode, VTX1 transmits high quality audio to VHF compatible devices including the Zaxcom VRX1.
VRX1
VRX1 is an analog VHF IFB audio receiver built to monitor audio and cue talent in the film, television, and broadcast industries. Simply connect an earpiece or headphones to the 3.5mm output for clean, reliable audio performance.
Among its core features is an intuitive voice prompt system, voting, frame specific audio delay, an adaptive squelch, headphone equalization, and multiple power options all in a rugged, easy to use device.
VRX1 features an innovative direct conversion design to receive audio that reduces all forms of RF interference while extending battery life.
ZGB
The GUI Bridge is a local server-based interface that lets the user remotely set up the parameters of each URX50 or URX100 via a smart phone, tablet, or computer. It needs to be connected to a TRXCL3, TRXCL4 or TRXCL5.
It's extremely intuitive and can be used on any device with a web browser on it, you just type in the IP address and you're good to go. The GUI controls things like naming your units and setting up channels that can be monitored by a URX. For example, you can let your script supervisor listen to your cart mix, while allowing the director to toggle between each of the talent mics and your mix. You have full control without ever having to be near to or touch the receiver once handed off.
VTX1 SPECIFICATIONS:
VHF TRANSMITTER
- RF modulation: Proprietary Digital Method (ZHD64) or FM
- VTX1 RF Freq Ranges: 192-217MHz
- RF frequency Step: 25 KHz
- RF bandwidth in ZHD Mode: 64 KHz
- RF bandwidth in FM Mode: 25 KHz
- channel separation in ZHD Mode: 300 KHz
- channel separation in FM Mode: 200 KHz
- antenna connector: 50 Ohm SMA Female
- emission designator: 180 KV2E
- FCC: Part 74 and Part 95
- RF power output: max 50mW
TRANSMITTER AUDIO
- dynamic Range: 114 dB
- distortion: 0.02%
- frequency Response: Mode 0 is 20 Hz to 16 kHz
- system Group Delay: 9 ms
- audio input connector: TA5 male
- analog Input Range: -10 to +4 dBu
- analog input type: balanced line level
- audio input Impedance: 4.7 k Ohm
- ADC Bit-Depth: 24 Bits
- ADC Sampling Rate: 32 kHz
- AES input: Balanced with sample rate conversion
- input sample rate range: 32 KHz to 96 KHz
TIMECODE READER / GENERATOR
- clock Accuracy: 1.54 PPM (1 Frame Out in 6 Hours)
- timecode Type: SMPTE
- timecode Frame-Rates: 23.98, 24, 25, 29.97NDF, 29.97DF, 30NDF, 30DF
INTERNAL RECORDING
- media: MicroSD Card (Flash Memory)
- file Format: .ZAX
- recording Time: 96 Hours (16 GB Card)
2.4 GHZ ZAXNET TRANSMITTER
- RF Frequency Range: 2.403 to 2.475 GHz
- RF Modulation: Digital Spread Spectrum
- RF Frequency Step: 1 MHz
- RF Bandwidth: 1 MHz
- channel Separation: 2 MHz
- sensitivity: -96 dBm
- RF power output: 50 mW
PHYSICAL / POWER
- weight: 0.206 kg
- dimensions (H x W x D): 2.54 cm x 9 cm x 8 cm
- display: Graphic OLED
- external Power: 8 to 18 VDC @ 180 mA
- power Connector: Hirose
- internal Power: N/A
- power consumption: 2.13 watts
* power measured pre-output band-pass filter
| Brand | Zaxcom |
|---|
