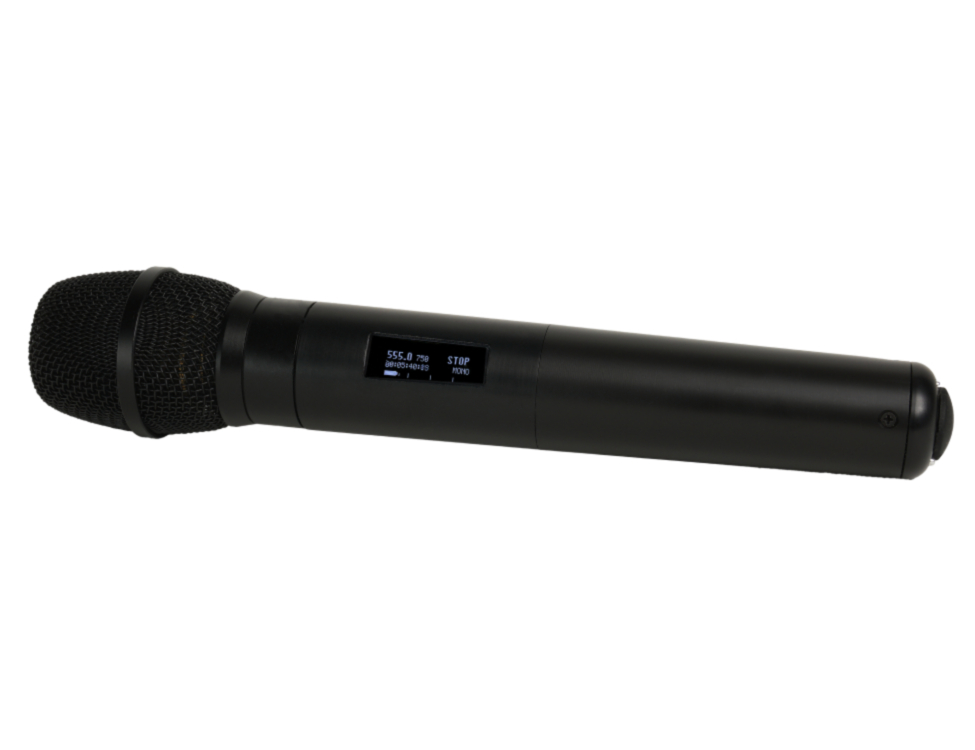

ZAXCOM ZMT5-HH
Meet the ZMT5-HH, the ultimate handheld transmitter for sound professionals. Built for pros that need it all, it features interchangeable mic capsules, crystal-clear encrypted audio, internal recording, remote control, time code, and best yet, the ability to run wirelessly or wired at the same time.
Crafted from sleek, machined metal, it's lightweight, cool to the touch, and built to perform. The ergonomic design protects the XLR, locks out accidental button presses, and hides a powerful antenna inside. With a quick-swap battery that lasts up to 10 hours, ZMT5-HH is ready for any performance, anywhere.
CONNECTIVITY
ZMT5-HH is a revolutionary handheld microphone that can operate as both a wireless transmitter and a hardwired microphone simultaneously.
Hardwired balanced mic level analog audio offers an alternative to wireless transmission or can be used simultaneously as a backup or sent to another device.
Pefect for everything from professional broadcast shows and live performances to seminars, weddings, internet talk shows, video blogs, gaming videos, concerts, houses of worship, and more.
INTERCHANGEABLE CAPSULES
ZMT5-HH is compatible with any Shure 1.25" opening and 28 thread pitch compatible mic capsule.
ENCRYPTED AUDIO
ZMT5-HH transmits wireless audio using 100% digital modulation, resulting in fully encrypted audio. Digital encryption is the only way to ensure the privacy of all audio transmissions. A digital transmission also provides audio quality far superior to an analog system.
INTERNAL RECORDING
Audio can be recorded internally to a microSD card using the highly reliable lossless MARF (Mobile Audio Recording Format), which eliminates file corruption common to recordings due to dead battery or early card removal.
ADVANCED FEATURES
Equipped with ZaxNet, audio is automatically recorded with a time code reference. Frequency, output power, and record mode can be remotely controlled.
Its fully digital wireless audio transmission features NeverClip, which extends the dynamic range of the microphone to 128dB, eliminating the need for a compressor that distorts the natural sound quality at high-volume audio levels.
FREQUENCY RANGE
ZMT5-HH is available in the following frequency band: 470 to 698 MHz.
POWER
ZMT5-HH is powered by a single 18650 Li-ion battery that can last up to 10 hours. The display will approximate the percentage of remaining battery power for easy exchange.
TRANSMITTER
- RF Modulation: proprietary digital method
- RF frequency Range: 470 698 MHz
- RF frequency Step: 100 KHz
- RF bandwidth in ZHD96 mode: 100 KHz
- RF bandwidth in XR Mode: 200 KHz
- channel separation in ZHD96 Mode: as close as 200 KHz
- channel separation in XR Mode: 400 KHz
- emission designator: 180 KV2E, 100 KV2E, 50 KV2E
- FCC part: 74.8611
TRANSMITTER AUDIO
- dynamic range: 128 dB
- distortion: 0.002%
- frequency response: Mode 0
- high pass filter: Off or 30 to 220 Hz, Steps
- mic power: 7v @ 50mA max
- mic connector: XLR-Female
- mic configuration: Balanced
- input range: -60 to -30 dBu
- mic impedance: 2.0 kO
- ADC Bit-Depth: 24 Bits
- ADC sampling rate: 48 kHz
TIMECODE READER / GENERATOR
- clock accuracy: 1.54 PPM (1 Frame Out in 6 Hours)
- timecode type: SMPTE
- timecode frame Rates: 23.98, 24, 25, 29.97 NDF, 29.97 DF, 30NDF, 30 DF
INTERNAL RECORDING
- media type: MicroSD Card (Flash Memory)
- file format: ZAX / Converts to BWAV or MP3
2.4 GHZ ZAXNET RECEIVER
- RF frequency range: 2.403 to 2.475 GHz
- RF modulation: Digital Spread Spectrum
- RF frequency step: 0.001 GHz (1 MHz)
- RF bandwidth: 1 MHz
- channel separation: 2 MHz Sensitivity
PHYSICAL
- display: Graphic OLED
POWER
- battery Type: single 18650 lithium battery
- battery Life: up to 10 hours
| Brand | Zaxcom |
|---|
