ZOOM F1-SP

article code
zoo.f1sp

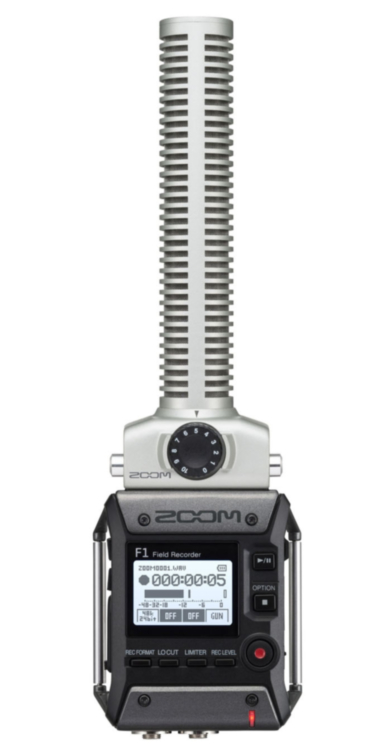

Zoom F1 field recorder with SGH-6 shotgun microphone, incl. WSS-6 foam windscreen, SMF-1 shock mount and SMC-1 stereo mini cable for DSLR
€ 279.00 List Price
€ 254.10 Our Price € 210.00 Our Price

The Zoom F1 field recorder + shotgun mic is the ultimate solution for run-and-gun filmmakers who need to capture professional quality audio for video. The F1-SP comes with the SGH-6 shotgun mic known for capturing pro-quality, hyper directional sound and it's aluminum body makes it extremely lightweight. Combined with the F1, you can record high-resolution audio up to 24 bit/96 kHz, providing high-impact audio for any video production, at any location. The one-touch buttons make record levels, limiter settings, volume output and filter control easily accessible. The monochromatic LCD display ensures visibility even in bright sunlight. The SMF-1 shock mount excels in eliminating noise caused by vibrations when shooting on the move.

Connect the F1 and shotgun to the included shock mount and attach it to your camera. Then connect the F1's audio output to your camera's input using the included 3.5mm stereo cable and you're ready to record. While recording to your camera, the F1 can also record to a microSD card, providing a stereo audio file which can be edited in post-production. The record hold function or the hold switch can be used to prevent your subject from accidentally hitting buttons while recording. An on-board limiter and auto-level control keep your levels safe when spikes in loud volume occurs. The F1 can be powered using 2x AAA batteries (included) or with the optional AD-17 power adapter. Transfer recordings to your computer in card reader mode or record directly to your computer or iPad using the F1 in USB audio interface mode.

Multiple mic options: with Zoom's proprietary 10-pin connector, the F1 is compatible with all of Zoom's interchangeable mic capsules, providing more options for recording. Compatible mic capsules: SSH-6, XYH-6, MSH-6, XYH-5, EXH-6 and SGH-6.

FEATURES:

  • two-channel audio recorder
  • compatible with Zoom microphone capsules
  • supports up to 24-bit/96 kHz audio in BWF-compliant WAV/MP3 formats
  • one-touch button controls
  • 1.25" monochrome LCD display
  • Rec Hold function to avoid accidental operation of buttons
  • stereo Mic/Line In mini phone jack with Plug-in power (2.5V)
  • stereo Phone/Line Output jack with dedicated volume control
  • built in limiter and auto level control to avoid clipping
  • pre-record function
  • tone generator for calibrating audio levels between the F1 and a DSLR or video camera without the need for an attenuator cable
  • sound marker function that outputs quick tone makes syncing easy
  • records directly to micro SD and SDHC cards up to 32 GB
  • micro USB port for data exchange to and from computer and use as an audio interface with computer or iOS device
  • runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)

WHAT'S INCLUDED:

  • 1x F1 field recorder
  • 1x SGH-6 shotgun microphone
  • 1x WSS-6 windscreen
  • 1x SMC-1 stereo mini cable for DSLR
  • 1x SMF-1 shock mount

RECORDING MEDIA:

  • microSD/microSDHC cards (Class 4 or higher, up to 32 GB)

RECORDING FORMATS

  • WAV: 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit
  • MP3: 48 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps

DISPLAY:

  • 1.25" monochrome LCD

INPUTS:

  • mic In: ZOOM mic capsule input
  • MONO SHOTGUN MIC (SGH-6):
  • directionality super cardioid (3 directional mic units)
  • -39 dB/1 Pa at 1 kHz
  • input gain: -infinity to +50 dB
  • maximum sound pressure input: 122 dB SPL
  • MIC/LINE IN:
  • connector: 3.5 mm stereo mini (with screw lock), supports plug-in power (2.5 V)
  • input gain: -12 dB /+36 dB
  • input impedance: 2 kOhm or more

OUTPUTS:

  • PHONE OUT:
  • connector: 3.5 mm stereo mini (with screw lock)
  • maximum output level: 11 mW + 11 mW (into 32 Ohm load)
  • MICRO USB:
  • mass storage operation: USB 2.0 High Speed
  • audio interface operation: USB class compliant,44.1kHz/16-bit, 48kHz/16-bit, 2-in/2-out, transfer method is asynchronous
  • for Windows: Windows 7 / 8 / 8.1 / 10
  • for Mac: Mac OS X 10.10 / 10.11 / 10.12 / 10.13

POWER:

  • 2x AAA batteries (alkaline, NiMH or lithium)
  • AC adapter (ZOOM AD-17): DC 5V/1A
  • CONTINUOUS RECORDING TIME (with batteries, with SGH-6 @ 48 kHz/24-bit/mono):
  • alkaline batteries: about 6.5 hours
  • NiMH batteries 750 mAh): about 6 hours
  • lithium batteries: about 11 hours

EXTERNAL DIMENSIONS:

  • dimensions (W x D x H in mm: 64.0 x 79.8 x 33.3

WEIGHT (MAIN UNIT):

  • 120 g
