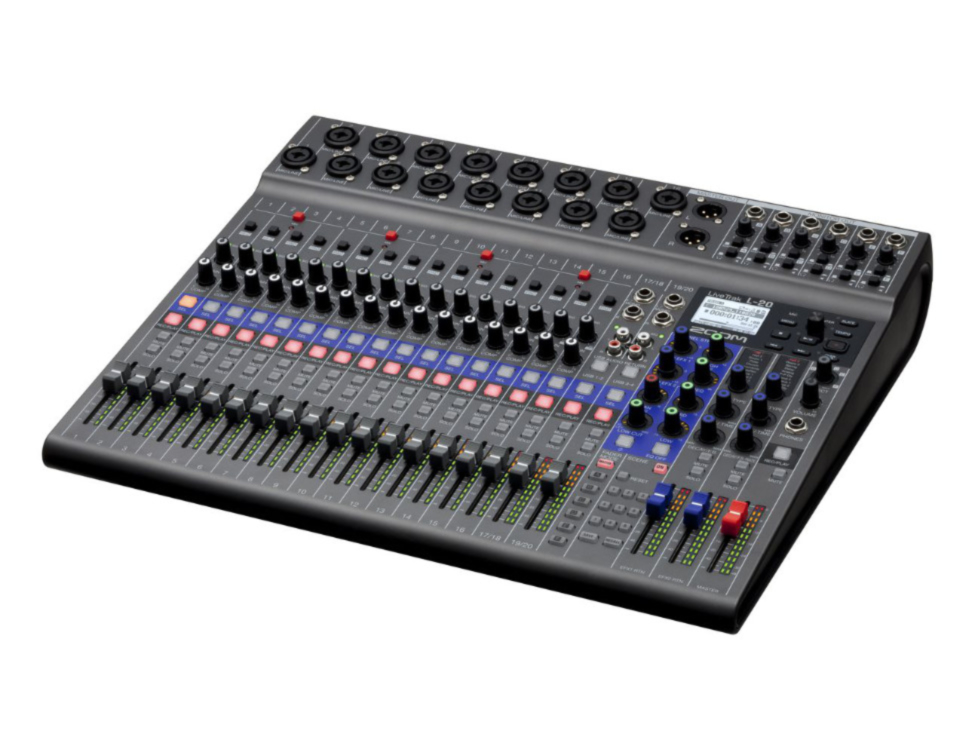

ZOOM L-20
The LiveTrak L-20 is a digital console offering everything creators need to mix, monitor and record complex productions. With 20 discrete audio channels and six individual custom monitor mixes, it's built for bigger, bolder arrangements.
The LiveTrak L-20 is designed to mix bigger. It features 20 inputs (16 mono mic/line inputs and two stereo inputs), all with independent 3-band mid-parametric EQ. The 16 mono inputs offer stand-alone compressor control.
Record 20 discrete channels plus a stereo mix directly to an SD card. The LiveTrak L-20 captures pristine audio in resolutions up to 24-bit/96 kHz.* At -128 dBu EIN with +60 dB maximum input gain, the L-20 is equipped with our quietest and most advanced preamps ever. Mix down finished songs on the L-20 or transfer your discrete tracks to a DAW to perfect later.
With six independent monitor outputs for musicians, each output can have its own custom mix, complete with effects, that can easily be switched from a powerful headphone output, to a balanced line output for stage monitors.
The LiveTrak L-20 features a dedicated 7th output for the FOH engineer. The sound engineer can monitor the main mix and any of the sub mixes, thus adjusting them to the musicians' satisfaction.
Although the LiveTrak L-20 is designed to work as a stand-alone recording and mixing console, it can also be used as a 22-in/4-out USB audio interface. Audio Interface mode lets you route inputs to any DAW or streaming software, even while recording to an SD card. Additionally, audio can be routed from your computer into the L-20 to be mixed with your live performance. Class compliant mode, which enables connection with iOS devices, is supported as well.
The LiveTrak L-20 offers wireless control via a free iOS mobile app featuring most onboard functions, including fader levels and modes, scenes, EQ, EFX sends, returns, parameters, and more. You can even manage your effects library and scene library right from your device. Control it all on either large monitor out view with a mini transport, or a mini monitor out view with expanded transport controls.
FEATURES:
- 20 discrete channels (16 mono plus 2 stereo) with XLR or 1/4-inch connectivity
- 22-track simultaneous recording, 20-track playback
- 22-in/4-out USB audio interface connectivity
- records up to 24bit/96kHz audio to SD card
- 8V phantom power
- Hi-Z connectivity (channels 1-2)
- 26dB pad (channels 3-16)
- built-in compression control (hannels 1-16)
- solo buttons for individual channels
- variable frequency low-cut control
- main outputs plus 6 customizable monitor outputs
- dedicated headphone output for sound engineer
- scene saving function, up to 9 scenes saved at a time
- 20 built-in chorus, delay and reverb effects with adjustable parameters
- two effect busses
- built-in slate mic
- class-compliant mode (for iOS compatibility)
- compatible with Remote Mixer app for iPad
- automatic recording starting/stopping capability
- pre-record function
- import/export projects with USB 2.0 host port
- compatible functions for ZOOM FS01 footswitch
- automatic power-save function
WHAT'S INCLUDED:
- 1x LiveTrak L-20
- 1x AD-19 AC adapter
- 1x USB 2.0 cable
NUMBER OF INPUT AND OUTPUT CHANNELS:
- mono inputs (mic/line): 16 stereo, (line): 2
- output master out: 1, monitor out: 6, phones : 1
MONO MIC/LINE INPUTS:
- type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
- input gain : PAD OFF: +16 up to +60dB & PAD ON: 10 up to +34 dB
- Hi-Z on: +6 up to +50 dB
- input impedance: XLR 3 kOhm, TRS: 10 kOhm /1 m Ohm (when Hi-Z ON)
- maximum input level: PAD OFF 0 dBu (at 0 dBFS) & PAD OFF +26 dBu (at 0 dBFS)
- Phantom power: +48 V
STEREO LINE INPUT:
- type: TS phone/RCA pin (unbalanced) jacks
- maximum input level : +10 dBu
MASTER OUT:
- type: XLR jacks (balanced)
- maximum output level : +14.5 dBu
- output impedance: 100 Ohm
MONITOR OUT A-F (with balanced output, connected to monitor speakers):
- type: TRS phone jacks (balanced)
- maximum output level: +14.5 dBu
- output impedance: 100 Ohm
MONITOR OUT A- F (with unbalanced output connected to headphones):
- type: standard stereo phone jacks
- maximum output level: 42 mW + 42 mW at 60 Ohm
- output impedance: 100 Ohm
PHONES:
- type: standard stereo phone jacks
- maximum output level: 42 mW + 42 mW at 60 Ohm
- output impedance: 100 Ohm
BUSES:
- master: 1
- monitor: 6
- send EFX: 2
CHANNEL STRIP:
- low cut: 40-600 Hz, 12dB/OCT
- EQ high: 10 kHz 15 dB shelving, mid: 100 Hz up to 8 kHz 15 dB peaking & low: 100 Hz 15 dB shelving
LEVEL METERS:
- level segments: 12
SEND EFFECTS:
- effects 20 types: EFX 1 Hall 1, Hall 2, Room 1, Plate, Church , DrumAmb , GateRev, Vocal 1 , Vocal 2 , Vocal 3 & EFX 2 Hall 3, Room 2, Spring Delay, Analog P-P Dly , Vocal 4, Chorus 1, Chorus 2
RECORDER:
- maximum simultaneous recording tracks: 22 at 44.1/48/96 kHz
- maximum simultaneous playback tracks: 20
- recording format: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo
- recording media: 4GB-32GB SDHC cards (Class 10 or higher) , 64GB-512GB SDXC cards (Class 10 or higher)
AUDIO INTERFACE:
- 44.1/48 kHz: recording 22 channels & playback 4 channels
- bit depth: 24-bit
- interface: USB 2.0
